Creates a rectangular polyline.
Access Methods
Button
Toolbar: Drafting tool set
Closed Shapes tool group Rectangle Menu:
Draw
Rectangle
Summary
With this command, you can specify the rectangle parameters (length, width, rotation) and control the type of corners (fillet, chamfer, or square).
List of Prompts
The following prompts are displayed.
Current settings: Rotation = 0
Specify first corner point or [Chamfer/Elevation/Fillet/Thickness/Width]: Specify a point or enter an option
First Corner Point
Specifies a corner point of the rectangle.

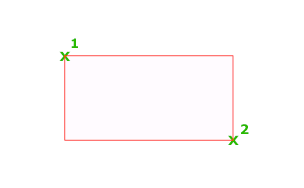

- Other Corner Point
-
Creates a rectangle using the specified points as diagonally opposite corners.
- Area
-
Creates a rectangle using the area and either a length or a width. If the Chamfer or Fillet option is active, the area includes the effect of the chamfers or fillets on the corners of the rectangle.
- Dimensions
-
Creates a rectangle using length and width values.
- Rotation
-
Creates a rectangle at a specified rotation angle.
Chamfer
Sets the chamfer distances for the rectangle.
Elevation
Specifies the elevation of the rectangle.
Fillet
Specifies the fillet radius of the rectangle.
Thickness
Specifies the thickness of the rectangle.
Width
Specifies the polyline width of the rectangle to be drawn.
