Creates a wipeout object, and controls whether wipeout frames are displayed in the drawing.
Access Methods
Button
Menu:
Draw
Wipeout
Summary

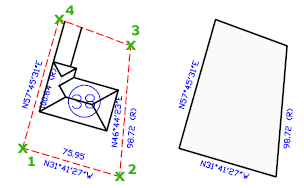

Creates a polygonal area that masks underlying objects with the current background color. The wipeout area is bounded by a frame that you can turn on for editing and turn off for plotting.
List of Prompts
The following prompts are displayed.
Specify first point or [Frames/Polyline] <Polyline>.
- First Point
-
Determines the polygonal boundary of the wipeout object from a series of points.
- Frames
-
Determines whether the edges of all wipeout objects are displayed or hidden.
- Polyline
-
Determines the polygonal boundary of the wipeout objects from a selected polyline.
- Erase Polyline
-
Enter y to erase the polyline that was used to create the wipeout object. Enter n to retain the polyline.
