ROTATE (Command)

Rotates objects around a base point.

Access Methods

Button

 Toolbar: Drafting tool set Move/Rotate/Scale tool group Rotate

 Menu:  Modify Rotate

 Shortcut menu: Select the objects to rotate. Right-click in the drawing area and click Rotate.

Summary

You can rotate selected objects around a base point to an absolute angle.

List of Prompts

The following prompts are displayed.

Current positive angle in UCS: ANGDIR=current ANGBASE=current

Select objects: Use an object selection method and press Enter when you finish

Specify base point: Specify a point

Specify rotation angle or [Copy/Reference]: Enter an angle, specify a point, enter c , or enter r

Rotation Angle

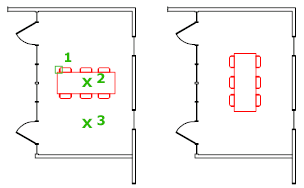

Determines how far an object rotates around the base point.

The axis of rotation passes through the specified base point and is parallel to the Z axis of the current UCS.

Copy

Creates a copy of the selected objects for rotation.

Reference

Rotates objects from a specified angle to a new, absolute angle.

When you rotate a viewport object, the borders of the viewport remain parallel to the edges of the drawing area.
