The HTML setup sheet is the default in Inventor HSM. However, you might prefer formats other than HTML. Inventor HSM includes a setup sheet for outputting the Microsoft Excel 2003 format.
The Microsoft Excel setup sheet and its accompanying layout/style template are named setup-sheet-excel.cps and setup-sheet-excel-template.xls, respectively. The post automatically opens Microsoft Excel after posting to allow you to print the setup sheet. For more accurate cycle time, you need to specify the rapid feed ("rapidFeed") and the tool change time ("toolChangeTime") in the Post Processing dialog box under Properties.
The post automatically translates any texts in the template into the active language using the normal post translation rules. However, you are still free to write text in the template in any language. The default layout is composed of 3 worksheets: an overview, an operation list, and a tool list. The layout is pre-configured to fit properly on a page when loaded.

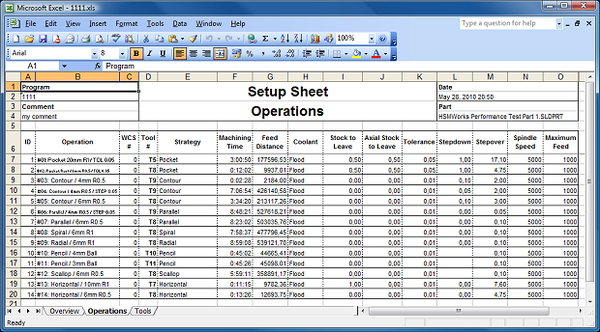

The Operations worksheet

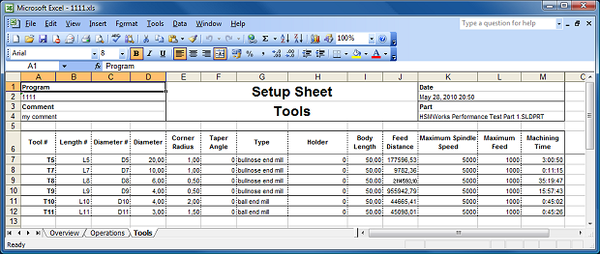

The Tools worksheet
