Define the Element Properties

1. Right-click on Physical Properties in the Autodesk Nastran In-CAD tree view and select New.

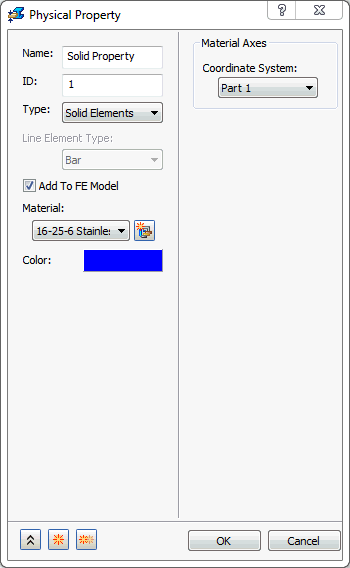

2. In the Physical Property dialog, type Solid Property for Name, select Solid Elements under Type.



3. Then click OK. The material 16-25-6-Stainless Steel is added to the Physical Property list.

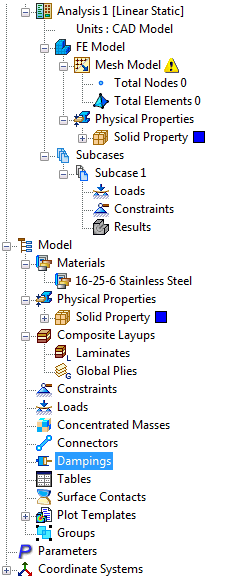

4. The tree view should now look as shown below.
