Define the Mesh
Right-click on
Mesh Model
and select
Edit
.

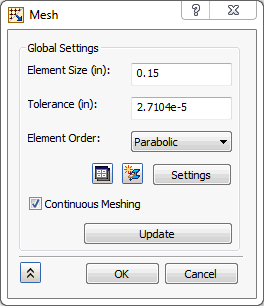

Change the
Element Size
to
0.15
.
Click
OK

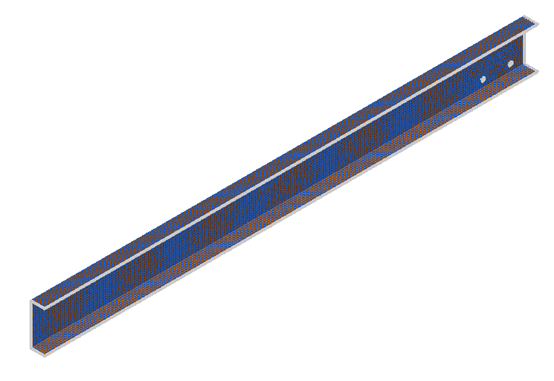

. The model should look at shown below.

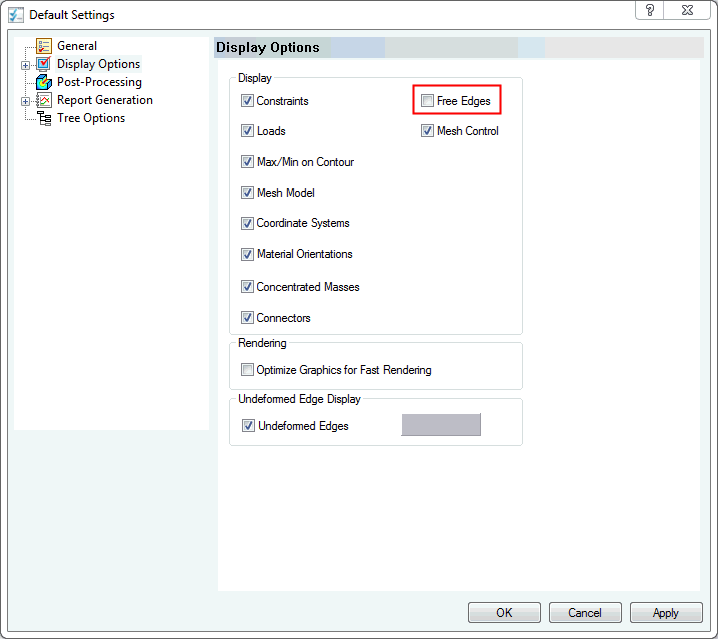

To remove white color edges, go to
Default Settings
, then
Display Options
, and uncheck
Free Edges
.
