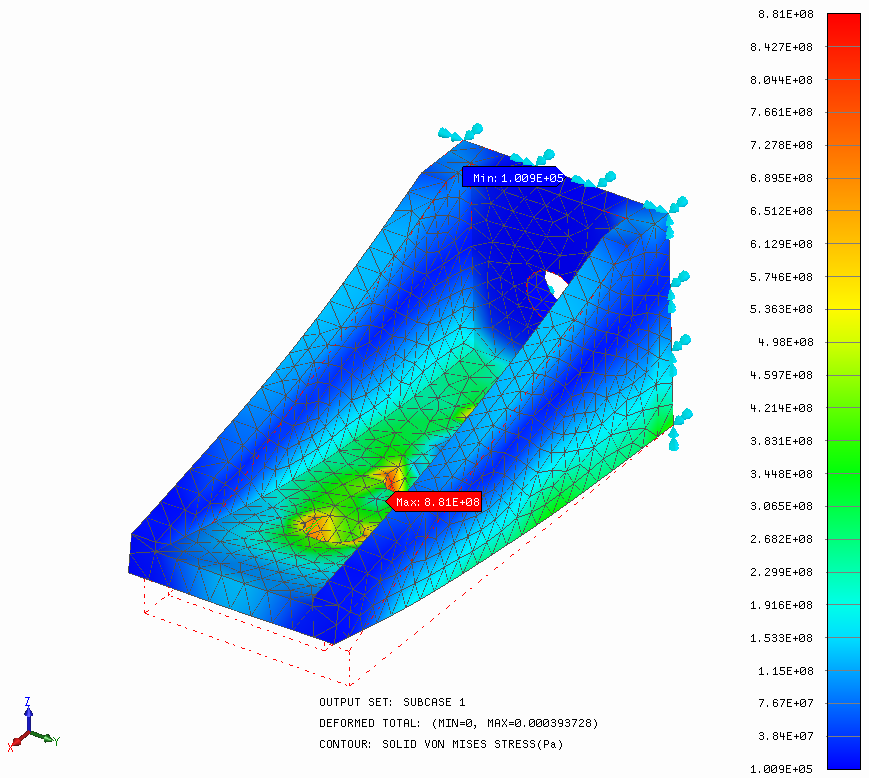

- Double-click
von Mises plot.

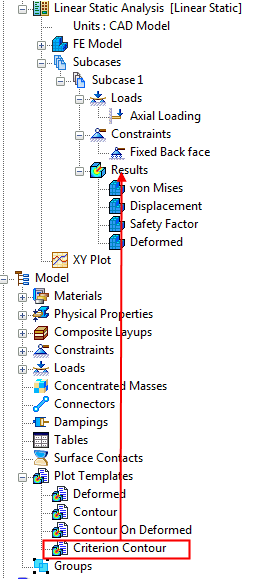

- Drag and drop a
Criterion Contour template onto
Results, as shown in the image below, from the
Plot Templates section of the tree.
- The template is placed at the bottom in
Results under
Subcase 1.
- Right-click on the new template and choose
Edit to change some settings in the plot.

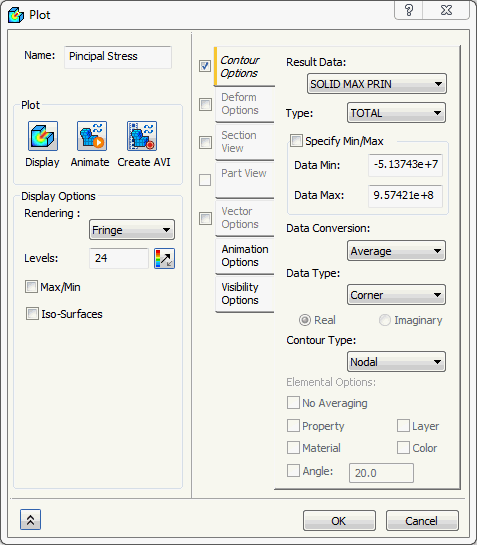

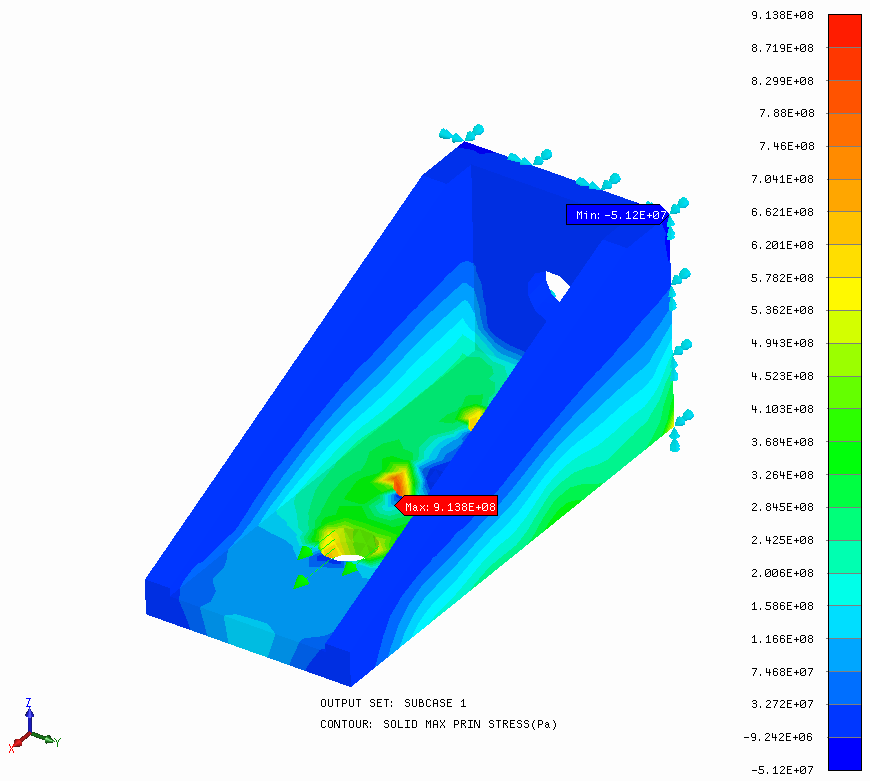

- Make changes so that the dialog looks as shown below. Change the
Name to
Principal Stress. Turn off
Element Edges,
Max/Min and change the
Result Data drop-down to
SOLID MAX PRIN.
- Click the
Display button.
- Click
OK.
