Run the Analysis

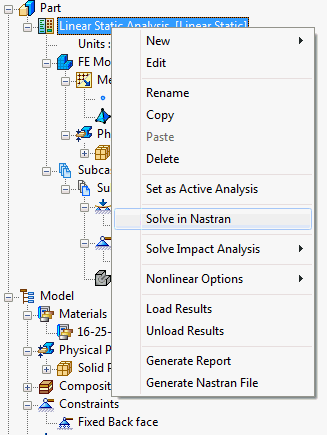

  1. Right-click on Linear Static Analysis in the tree and select Solve in Nastran.

  2. This option runs the model and saves the analysis file with a default name of Bath Fitting.NAS . Notice that this is the name that you saved the part as.
  3. Autodesk Nastran solves the model and displays the progress in the Autodesk Nastran Output window inside Autodesk Nastran In-CAD.
  4. Once the solution is done, a message pops up as shown below. Click OK.

  5. Results are automatically loaded into Autodesk Nastran In-CAD after the model is solved.
