Generate a Report

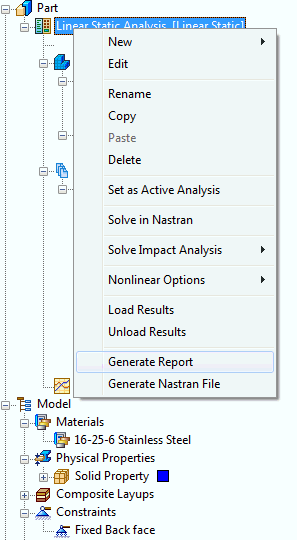

1. In the tree view, right-click on the analysis name, Linear Static Analysis, and select Generate Report.

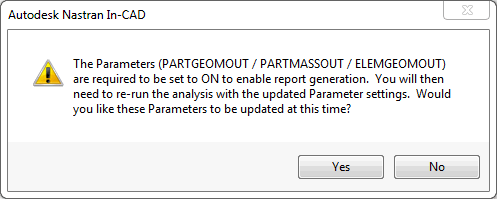

2. Depending on your settings, the following message may appear:



3. Click Yes.
4. In the Model tree double-click on Parameters. Under Geometry Processor Parameters from the left-hand window, check the Advanced Settings checkbox on the lower left-hand corner and notice that the PARTGEOMOUT, PARTMASSOUT, and ELEMGEOMOUT settings are turned ON automatically.
5. Re-run the analysis. With the proper settings you can generate a report. Right-click on the analysis name, Linear Static Analysis, and select Solve in Nastran.
6. Once again, in the tree view, right-click on Linear Static Analysis and select Generate Report.

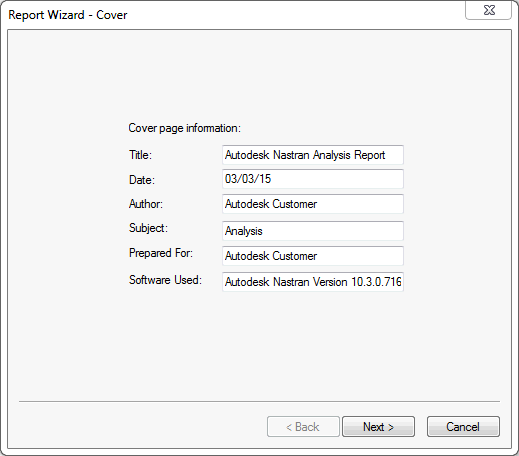

7. The Report Wizard – Cover window opens. Edit in the following information:
   • Title: Linear Static Analysis Report
   • Author: Your Name
   • Click Next>.

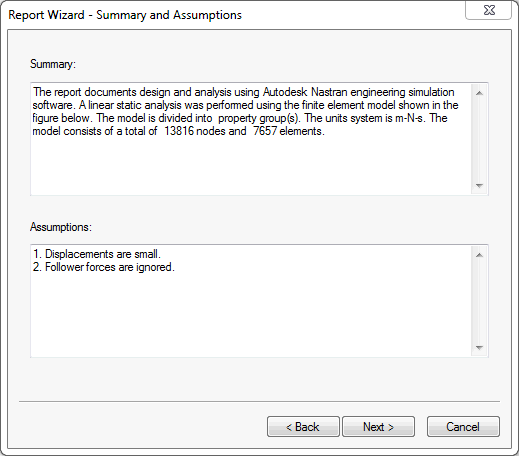

8. The Report Wizard – Summary and Assumptions dialog appears. Under the Assumptions window, add 3. Effects of gravity are negligible. Click Next >.

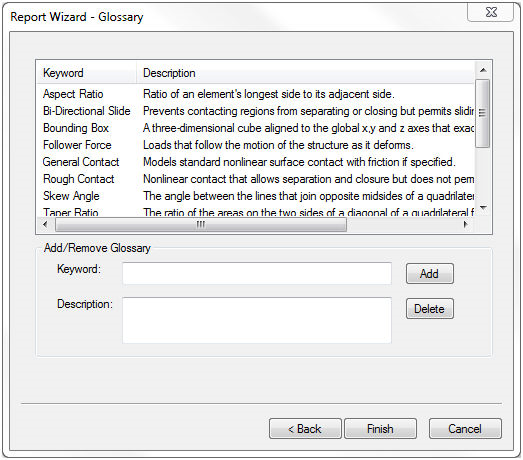

9. Click Next> on the Report Wizard pop-up dialogs until the Report Wizard – Glossary dialog appears, and then click Finish to generate the report.



10. Save the report as Analysis Report.
11. Open the HTML file you just created by clicking the View Report button on the Report dialog pop-up. Notice that figures for the report were automatically generated along with the text.
