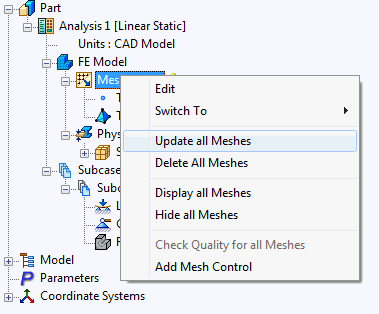

- Right-click on
Mesh Model and select
Update all Meshes. This will generate a solid mesh with parabolic tetrahedron elements and a default size based on the object dimensions.

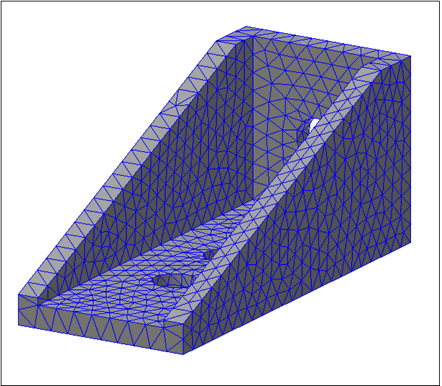

- The meshed model should look as shown below. (If you cannot see the mesh, right-click anywhere in the tree window and select Default Settings. Go to Display Options, and select the checkbox next to Mesh Model.)
