- When the analysis completes, double-click on
Displacement under

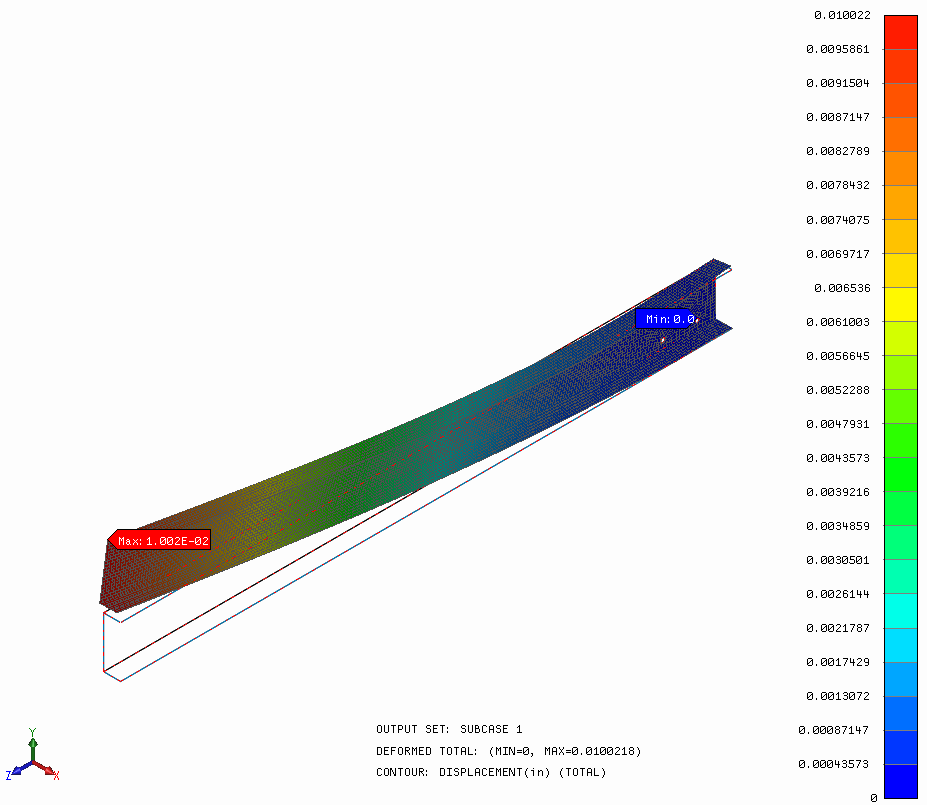

Subcase 1 to see the deformed and contour plot of the beam under the
Y Displacement load. Loads and constraints are turned off for image clarity.

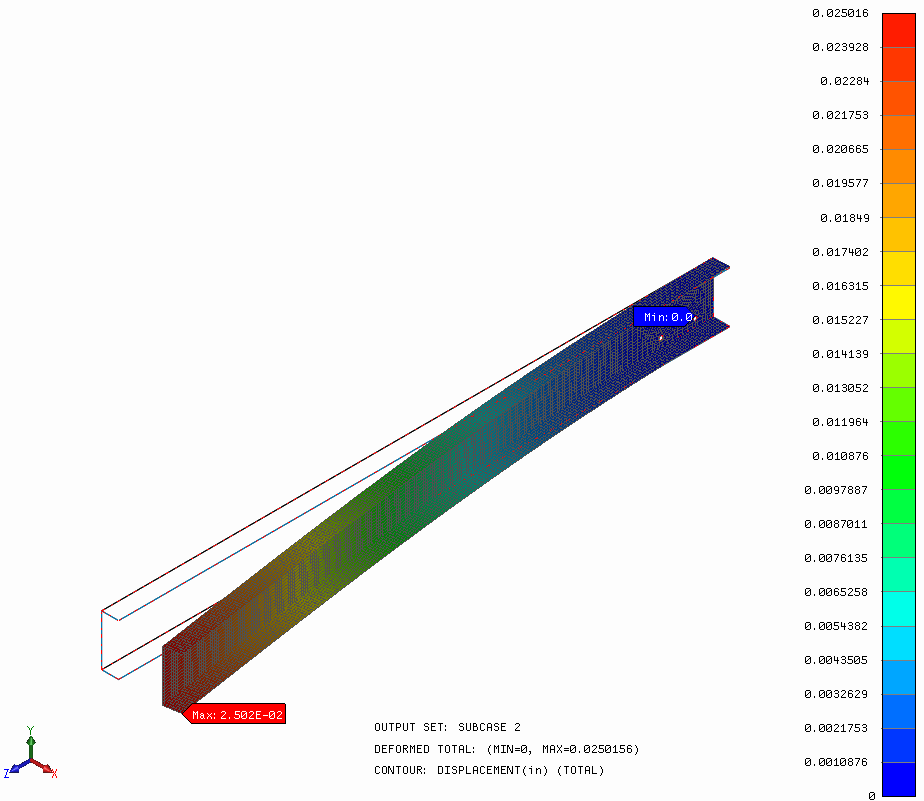

- Then check out the deformed and contour plot of the beam under the
X Displacement load.
