Set the Units

  1. Go to Tools/Options/Document Properties/Units and select MKS (meter, kilogram, second). They will become the Default units.

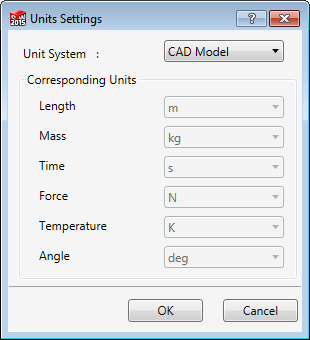

  2. Or, right-click Units in the tree and select CAD Model under Unit System. Make sure that the units are set properly to meters and kilograms.

  3. Click OK.
