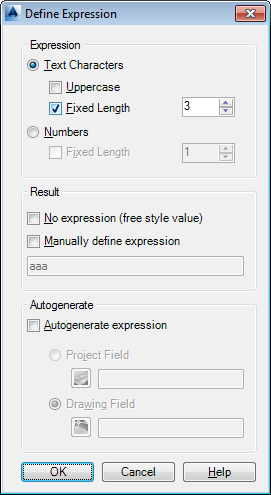

Sets tag expressions, results, and automatic generation details.
Expression
Defines tagging format expressions.
- Text Characters
-
Displays tags as text characters, which can be displayed in uppercase letters and defined as a fixed length.
- Numbers
-
Displays tags as numbers, which can be defined as a fixed length.
Result
Allows you to set an expression either in free-form or manually.
- No Expression (Free Style Value)
-
Displays the tag in free-form.
- Manually Define Expression
-
Displays a box where you enter the expression.
Autogenerate
Sets automatically generated expressions for project or drawing fields.
- Autogenerate Expression
-
Enables the Project Field and Drawing Field options.
- Project Field
-
Displays the Select Project Autogeneration Property dialog box.
- Drawing Field
-
Displays the Select Drawing Autogeneration Property dialog box.
