Occupancy Schedules

These schedules provide information about occupancy assumptions for different building types used during energy analysis.

These assumptions are based on ASHRAE standards. The other operating schedules for each building type (such as lighting and HVAC) are based on the occupancy schedules for that building type.

For each occupancy schedule, the following tables provide hourly values for a 24-hour period, starting at midnight (0 to 24 on the x-axis). These values (0 to 1 on the y-axis) are fractional multipliers.

For example, if an occupancy density is 100 people in a building, then...

• a schedule value of 1 means that 100 people are assumed to be in the building during that hour.
• a schedule value of 0 means that no people are assumed to be in the building during that hour.
• a value of 0.1 means that 100 * 0.1 = 10 people are assumed to be in the building during that hour.

Occupancy-Assembly

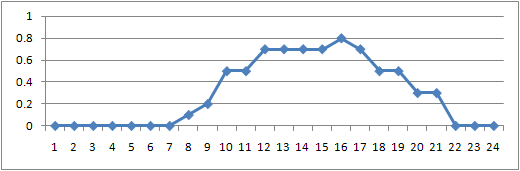

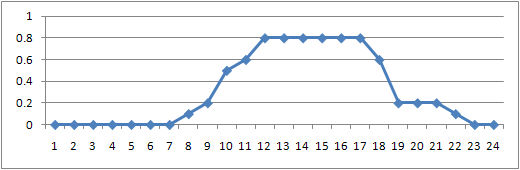

Assembly schedule on weekdays

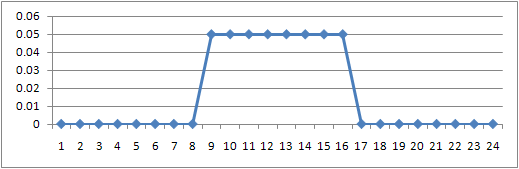

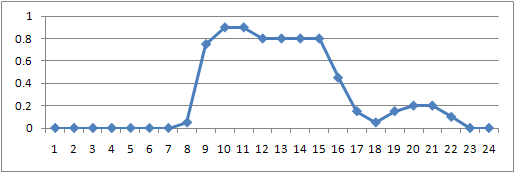

Assembly schedule on Saturday

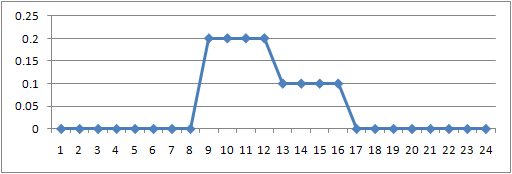

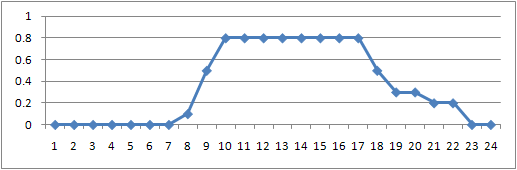

Assembly schedule on Sunday

Occupancy-Health

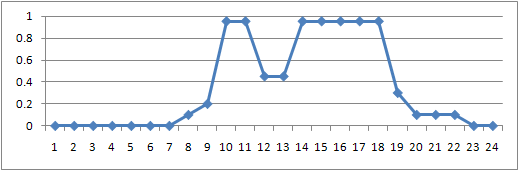

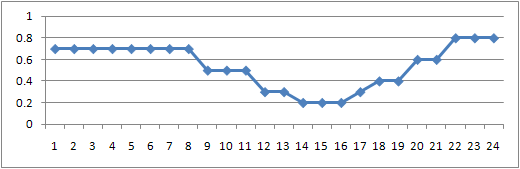

Health schedule on weekdays

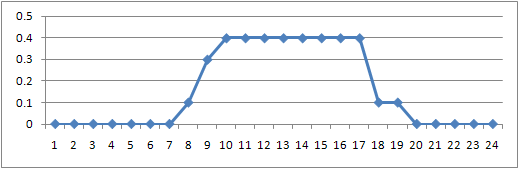

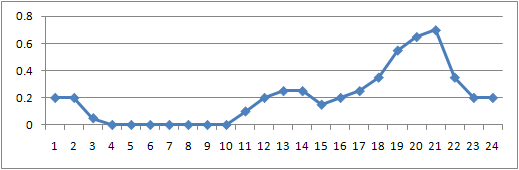

Health schedule on Saturday

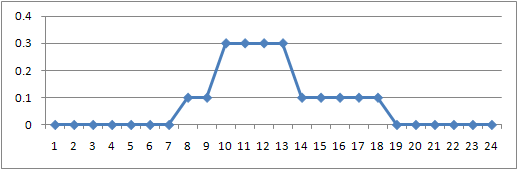

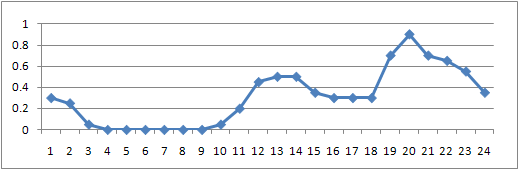

Health schedule on Sunday

Occupancy-Hotel/Motel

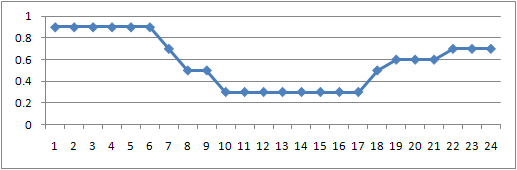

Hotel/motel schedule on weekdays

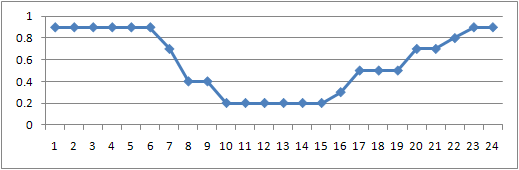

Hotel/motel schedule on Saturday

Hotel/motel schedule on Sunday

Occupancy-Office

Office schedule on weekdays

Office schedule on Saturday

Office schedule on Sunday

Occupancy-Residential

Residential schedule on weekdays

Residential schedule on Saturday

Residential schedule on Sunday

Occupancy-Restaurant

Restaurant schedule on weekdays

Restaurant schedule on Saturday

Restaurant schedule on Sunday

Occupancy-Retail

Retail schedule on weekdays

Retail schedule on Saturday

Retail schedule on Sunday

Occupancy-School

The following occupancy schedules apply to elementary through secondary schools (grades K-12) during open sessions on the following dates:

• January 6, 1997–April 5, 1997
• April 14, 1997–June 8, 1997
• August 25, 1997–December 15, 1997

For the closed sessions of the school year, the occupancy multipliers are zero (0) for all hours of the day and all days of the week.

• January 1, 1997–January 5, 1997
• April 4, 1997–April 13, 1997
• June 9, 1997–August 24, 1997
• December 16, 1997–December 31, 1997

School schedule on weekdays

School schedule on Saturday

School schedule on Sunday

Occupancy-Warehouse

Warehouse schedule on weekdays

Warehouse schedule on Saturday

Warehouse schedule on Sunday
