We now look at the von Mises stress results and compare the maximum value with the allowable stress.
- Click
Results Contours
Stress von Mises. The maximum stress is approximately 106 N/mm2, which exceeds the target maximum design stress of 90 N/mm2. - To locate the maximum stress, click

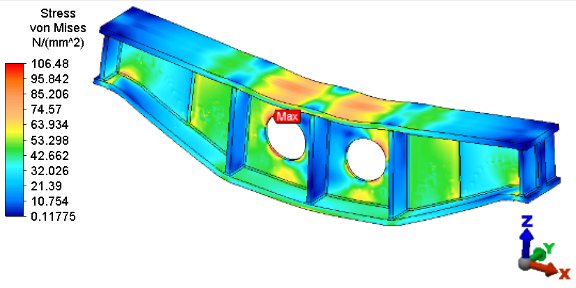

Results Inquire Probes Maximum. The maximum stress occurs along the edge of one of the web holes. - Click and drag with the middle mouse button to rotate the view slightly so that you get a better view of both web holes. The model should display as shown in the following image:
