Applying a shader to a model

Apply various types of shaders directly to models to obtain different effects.

To apply a shader to a model:

1. In the Resources window, click the Asset browser tab.
2. In the Asset browser, expand the Shading Elements folder and click the Shaders folder.
   The Asset browser displays by default a thumbnail view of the shaders.

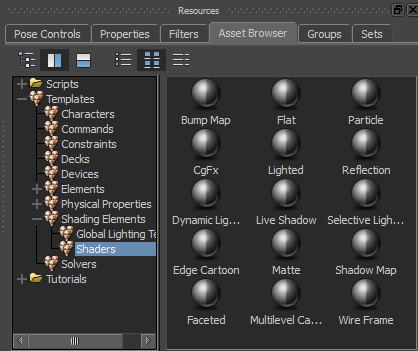

   Thumbnail view of the shaders in the Asset browser

3. Drag a Shader asset from the Asset browser onto a model in the Viewer window.
   A context menu appears.

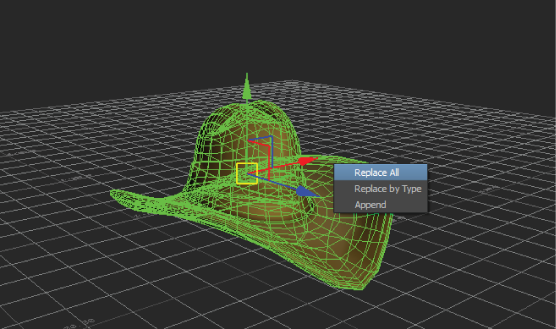

   Viewer window A. Shader context menu

4. Select an option from the context menu.

   Context menu option	Description
   Replace All	Replace All replaces all shaders applied to the object with the selected shader.
   Replace by Type	Replace by Type replaces all shaders of a certain type with the selected shader.
   Append	Append adds the selected shader to shaders already applied to the object.
