Results may be imported and viewed in ParaView.
The following figures show the computed final distortion after cool down but still on the base plate, after the base plate has been removed, and after the support structures have been removed.

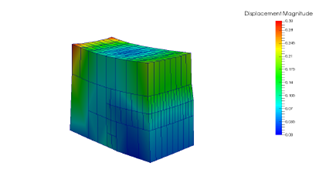

(a) After build and cool down

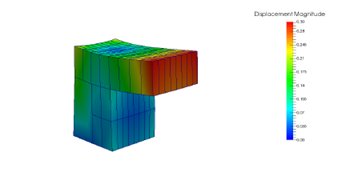

(b) After part removal from the build plate
(c) After support material removal from the component
