Update Origin Location & Orientation

The orientation and location of the point cloud's origin can affect navigation and editing in several ways. The most common reason for changing the origin is for working in large-scale point clouds, such as aerial views, where the scans are miles apart.

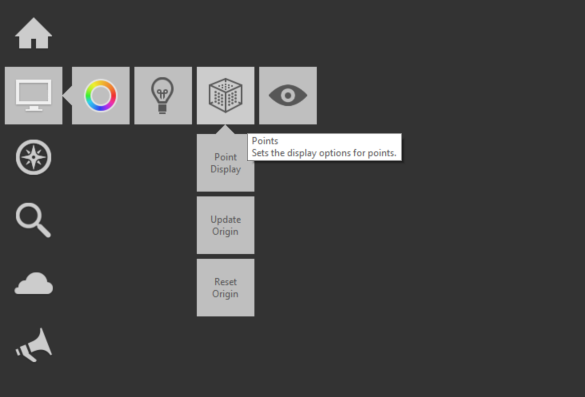

On the Project screen, hover over Display Settings → Points → Update Origin.

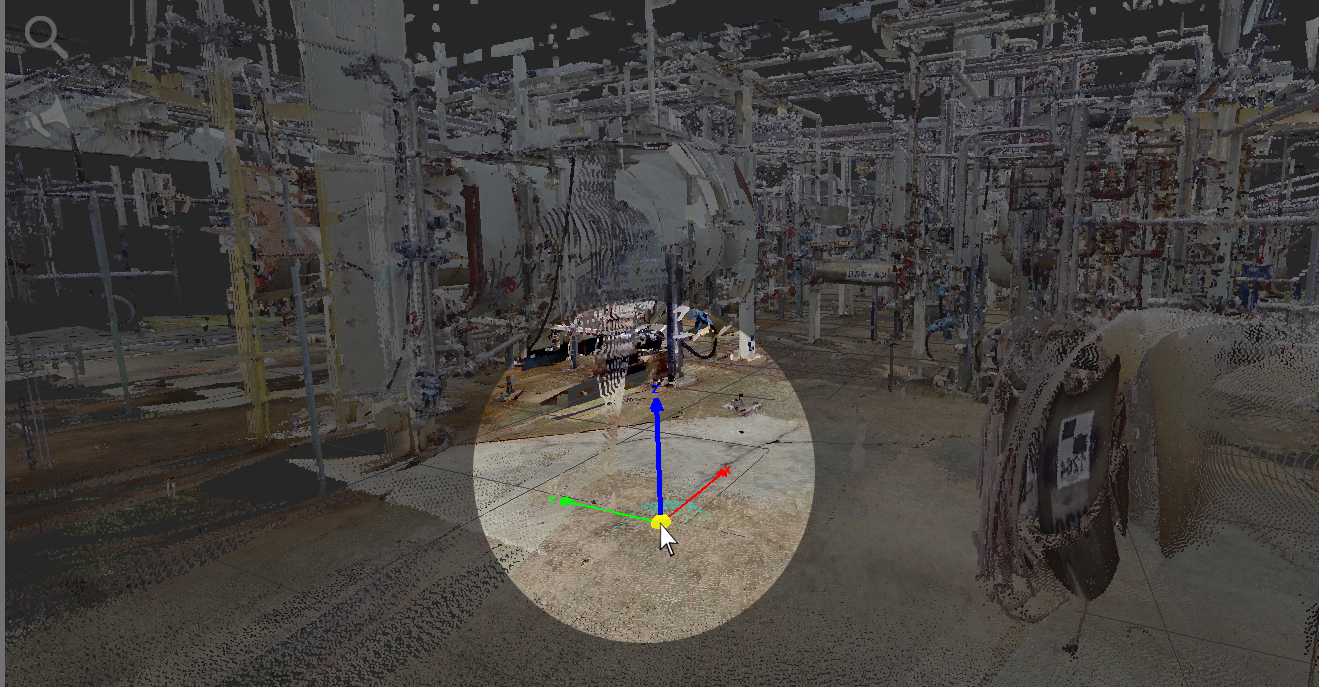

In the point cloud, click the new origin point and press the Tab key. A blue disk graphic indicates the plane that is perpendicular to the current z axis (which indicates the "up" direction).
