Analyze the Model

  1. Click Analysis Analysis Run Simulation. After solid meshing, the analysis proceeds and the model displays in the Results environment.

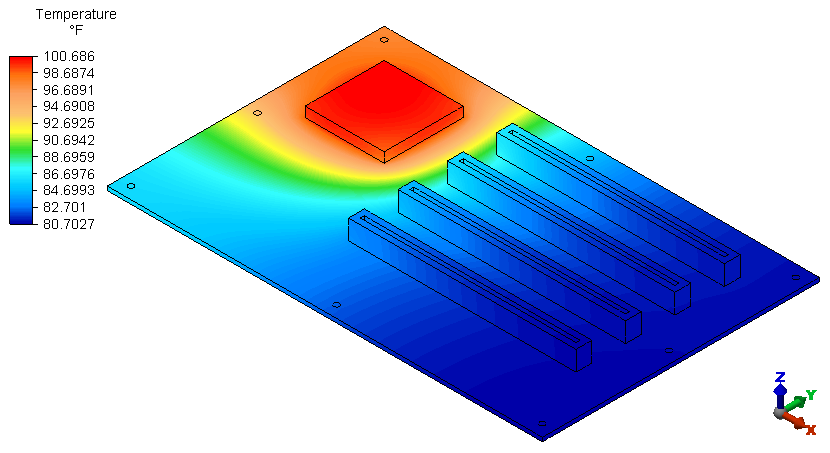

  2. Click Results Options View Loads and Constraints to hide the thermal load symbols if they are visible. The model should look like the following image:
