Apply the Forces in the -X Direction

Now we apply the four 175 lbf forces in the -X direction to the center of the model.

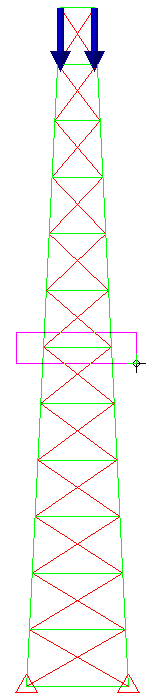

1. Click and drag to draw a box enclosing the center of the model as shown in the following image.

2. Click Setup Loads Force.
   1. Type -87.5 in the Magnitude field
   2. Select the X radio button. Again, we have cut the force in half because there are two nodes at each vertex, one per part.
3. Type 2 in the Load Case / Load Curve field and click Curve. The Multiplier Table Editor dialog box displays for defining a load curve.
   1. Click Add Row three times so that there is a total of four rows in the table.
      1. Type 2 in the second row of the Time column.
      2. Type 2.25 in the third row of the Time column
      3. Type 1 in the third row of the Multiplier column.
      4. Type 4 in the fourth row of the Time column.
      5. Type 1 in the fourth row of the Multiplier column.

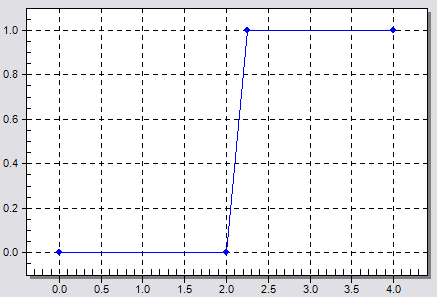

   2. Press Enter. The load curve should appear within the dialog as shown below.

   3. Click OK to accept the load curve.
4. Click OK to apply the forces.
