Analyze the Model

Click  Analysis Analysis Run Simulation. The analysis proceeds and the model appears in the Results environment.   By default, the displacement magnitude is presented initially.

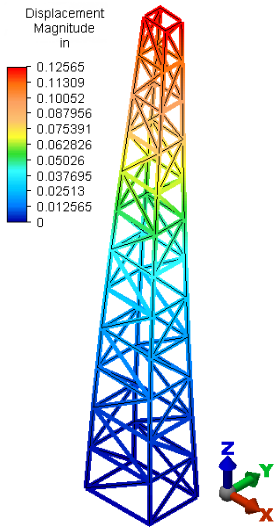

The model displays the in-phase results of the first frequency.  The maximum displacement magnitude is about 0.126 inches, as shown below.
