Click
Analysis

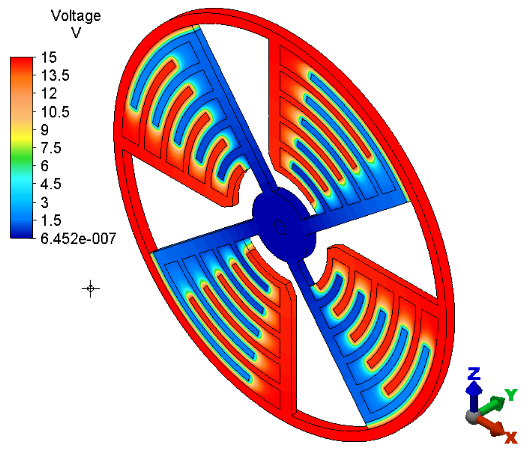

Analysis Run Simulation. The analysis proceeds and the model displays in the Results environment. The
Voltage
results are initially displayed by default. Do not be concerned if your minimum voltage (at the bottom of the legend) does not exactly match the image below. This number is essentially zero for all practical purposes.
