We now look at the von Mises stress results and compare the maximum value with the allowable stress.
- Click
Results Contours

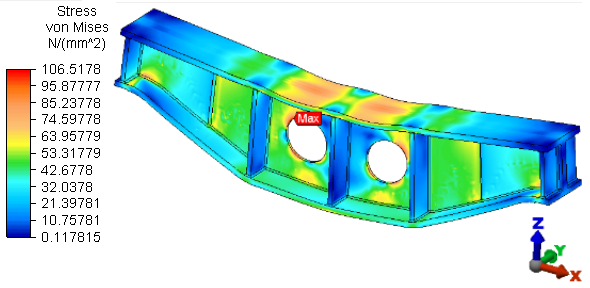

Stress von Mises. The maximum stress is between 106 and 107 N/mm2, which exceeds the target maximum design stress of 90 N/mm2.
- To locate the maximum stress, click
Results Inquire Probes Maximum. The maximum stress occurs along the edge of one of the web holes.
- Click and drag with the middle mouse button to rotate the view slightly so that you get a better view of both web holes. The model should display as shown in the following image:
