V-bit carving toolpath

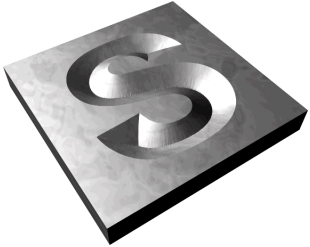

Use a V-bit carving toolpath to replicate a hand-carved look for your selected vector artwork. This toolpath enables you to control the depth of the centreline carved into the block of material, and control the order in which the toolpath segments are machined.

Warning: You cannot machine a V-Bit carving toolpath without using a 3-axis machine. For more information, consult a member of staff or your machine-tool supplier.

Click the Create V-Bit Carving Toolpath button on the Toolpaths panel to display the V-Bit Carving panel.

After you have calculated the toolpath, you can simulate it.
