Tutorial: CubeCreator

This tutorial program shows how to add textures, materials, and animation to meshes representing a model (in this case, a cube). Operations include:

High level operations	Low level operations
Constructing the baseline scene	- Defining the animation stack and animation layer that will contain the animation
Adding animation to the camera	Constructing the initial scene graph.

Project Organization

The CubeCreator project is located at <yourFBXSDKpath>\examples\UI Examples\CubeCreator\.

CubeCreator has two source files:

Source file	Description
SDK_Utility.cxx	Contains all the code that calls FBX SDK to create the scene, add the cubes, and add materials, textures and animation to the cubes.This tutorial explains much of the code in this file.
UI.cxx	Contains the code that displays the tree view of the scene and that interacts with the user. The code uses FBX SDK to retrieve the scene data that the UI displays in its tree view.This tutorial does not explain any of the code in this file.

User Interface

The CubeCreator sample program shows you how to add textures, materials, and animation to models in a scene.

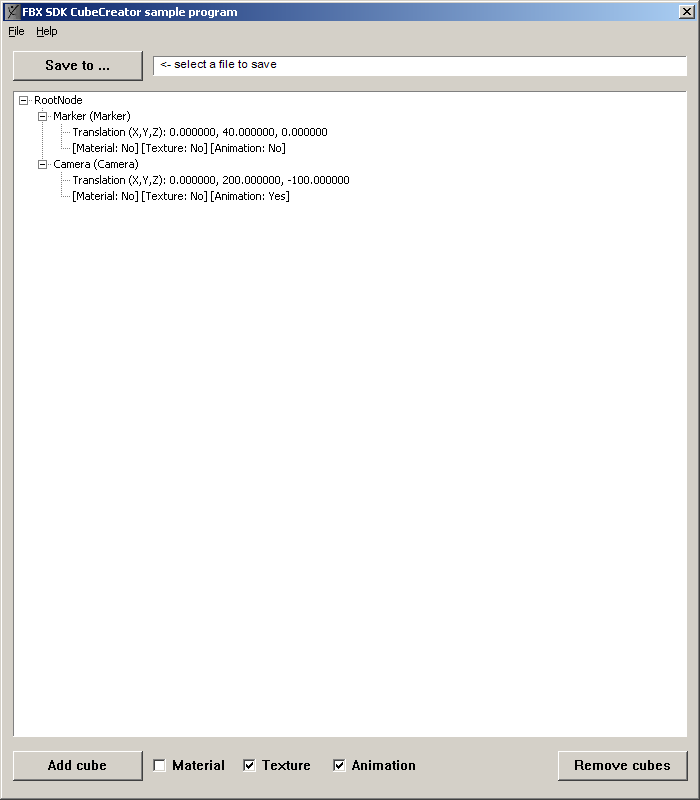

At startup, CubeCreator displays a tree view of a scene containing only a marker and a camera.

As a user, you can add cubes one at a time to the scene. For each cube, you can opt to:

• Add a texture.
• Add materials.
• Add an animation.

You can save the scene as an FBX file (or in any file format exported by FBX SDK).

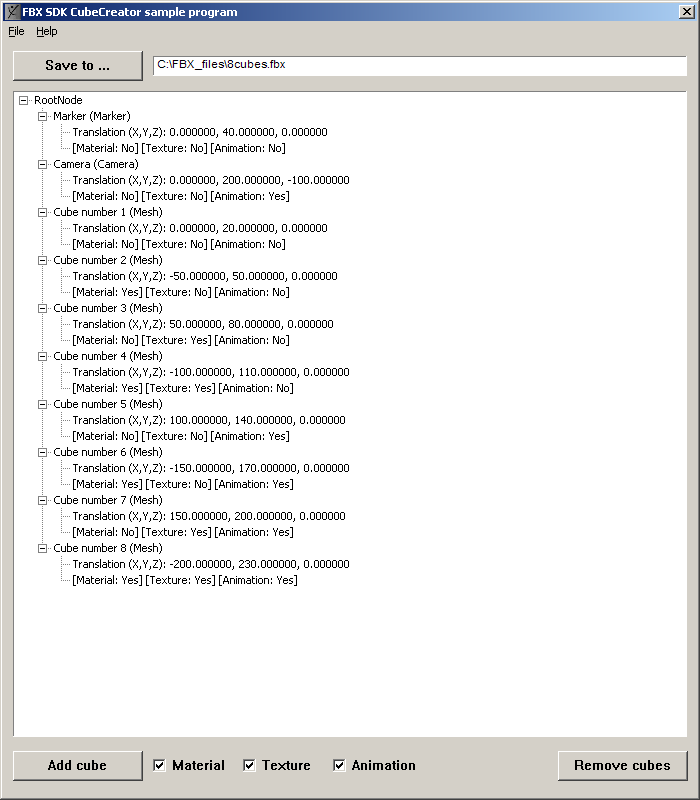

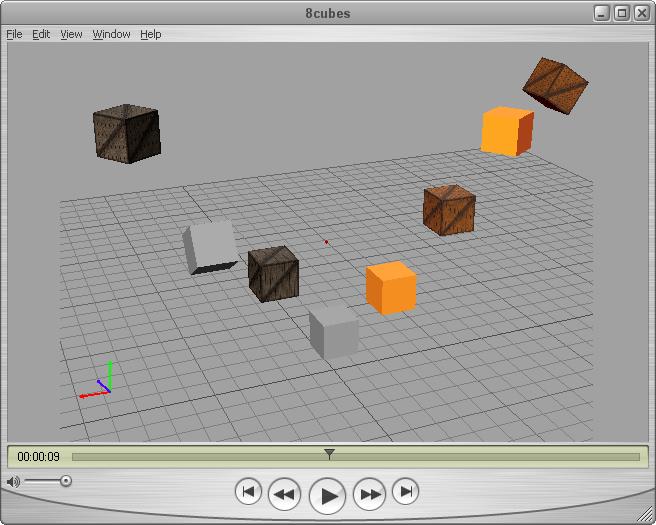

Here is what 8cubes.fbx (the scene shown as a tree, above) looks like when opened in FBX for QuickTime:

Location of a Texture File at Run Time

<yourFBXSDKpath>\examples\UI Examples\CubeCreator\ contains a file named crate.jpg, which CubeCreator uses as a texture file.

You must copy this texture file into the folder where the executable for CubeCreator will start. Unless you change the settings for the CubeCreator project:

• At build time, CubeCreator.exe will be saved in a subdirectory of <yourFBXSDKpath>\bin\CubeCreator\.
• At run time, CubeCreator.exe will execute in that same directory. It will search for the texture file in that location.

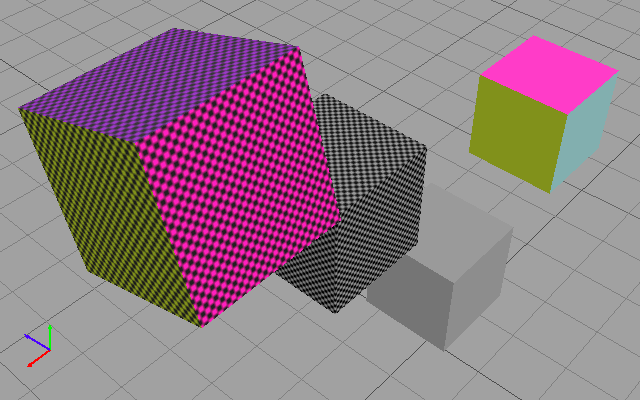

If FBX for QuickTime cannot find a texture file for a surface, it renders the surface as a checkerboard pattern. Here is how that looks for the faces of our cubes:

Main Logic

CubeCreator does the following operations:

• Constructs a baseline scene containing a marker, a camera, and a light.
• Points the camera at the marker, then adds animation to the camera. The animation is always the same: a view of the cubes that sweeps back and up.
• Defines one material that you (the user) can apply to any or all cubes.
• Defines one texture that you can apply to any or all cubes.
• Defines animation that you can apply to any or all cubes. If applied to a cube, the animation causes the cube to rotate around its axis of rotation.
• Lets you add cubes, one at a time. The cubes are mesh objects.
• Places the first cube near the marker.
• Places subsequent cubes alternately: left of and above the leftmost cube, then right of and above the rightmost cube.
• Gives each cube an axis of rotation: either X, Y, or Z.
• Lets you (the user) add 0 to n cubes. To each cube added, you have the option of adding any or all of a material, a texture, and animation. Lets you save the scene as an FBX file (or in another FBX-supported file format).
• Invites you to use FBX for QuickTime to view and interact with the scene stored in the saved file.
