Creating MachineDNA

The MachineDNA Profiler plugin profiles the unique characteristics of a machine tool. PowerMill uses the profile data (MachineDNA) to optimise the performance of toolpaths on the machine tool to improve machining efficiency.

Note: This plugin is only available with PowerMill Ultimate.

To generate the data required to create MachineDNA, carry out the MachineDNA performance test on the selected machine tool.

Vortex machining uses the test results to create 'clever' values for:

• Most efficient trochoid size.
• Optimal point distribution.

To create MachineDNA:

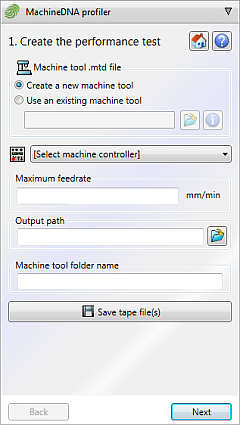

1. Complete the Create the performance test page.



2. Carry out the performance test on your machine tool.

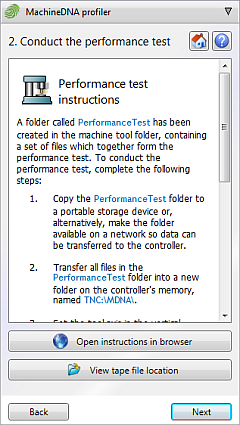

   The Conduct the performance test page displays instructions to guide you through the test procedure.

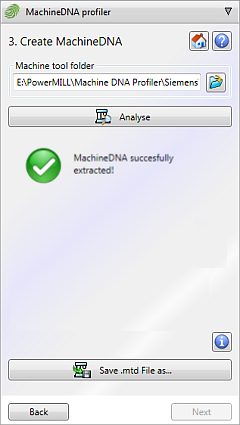

3. Transfer the performance test data from the machine controller to your PC and click Analyse to create your machine tool's MachineDNA.



4. Save the MachineDNA .mtd file and import it into PowerMill to begin optimising your toolpaths.

Adding MachineDNA to your PowerMill suite

The plugin is easy to install and PowerMill recognises it automatically.
