#include <mobu-python-api.h>

Class Description

Base class for all managed assets.

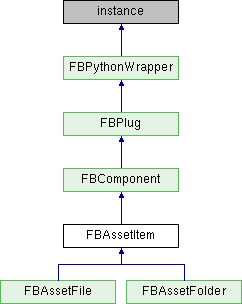

Inheritance diagram for FBAssetItem:

Public Member Functions
	__reduce__ ()

bool	CheckIn (FBAssetItem arg1, str arg2, object arg3, object arg4)
	Checks in this item and all its children (if this is a folder item). More...

bool	CheckOut (FBAssetItem arg1, str arg2, object arg3, object arg4)
	Checks out this item and it's childs (if this is a folder item) and makes them writeable on the local disk. More...

bool	GetLatest (FBAssetItem arg1, object arg2, object arg3)
	Obtain the latest version of the item from the server. More...

str	GetLocalPath (FBAssetItem arg1)
	Get the path to this item on the local hard disk. More...

str	GetName (FBAssetItem arg1)
	Get the name of this item (file name or folder name). More...

object	GetParent (FBAssetItem arg1)
	Get the parent folder of this item. More...

str	GetServerPath (FBAssetItem arg1)
	Get the path to this item on the database. More...

	ShowHistory (FBAssetItem arg1)
	Display a dialog with this item history. More...

	ShowProperties (FBAssetItem arg1)
	Display a dialog showing the properties of this item. More...

bool	UndoCheckOut (FBAssetItem arg1, object arg2, object arg3)
	Cancel the last check out operation. More...

	__init__ (...)
	Constructor. More...

Public Member Functions inherited from FBComponent
	__reduce__ ()

FBPropertyList	PropertyGetModifiedList (FBComponent arg1, FBPlugModificationFlag arg2)
	Get list of properties which have been modified since last loading. More...

str	ClassName (FBComponent arg1)
	Get the class name. More...

	DisableObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	Disable a specific Object Flags. More...

	EnableObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	Enable a specific Object Flags. More...

bool	FBCreate (FBComponent arg1)
	Open Reality Creation function. More...

	FBDelete (FBComponent arg1)
	Open Reality deletion function. More...

	FBDestroy (FBComponent arg1)
	Open Reality destruction function. More...

FBObjectFlag	GetObjectFlags (FBComponent arg1)
	Get all Object Flags (concatenated). More...

bool	GetObjectStatus (FBComponent arg1, FBObjectStatus arg2)
	Check to see if an object status is enabled. More...

bool	HasObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	Check whether a specific object flag is enabled. More...

bool	Is (FBComponent arg1, object arg2)
	Returns true if object is of type TypeId. More...

bool	ProcessNamespaceHierarchy (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5)
	ProcessNamespaceHierarchy. More...

bool	ProcessObjectNamespace (FBComponent arg1, FBNamespaceAction arg2, str arg3, str arg4, object arg5)
	ProcessObjectNamespace. More...

int	PropertyAdd (FBComponent arg1, FBProperty arg2)
	Add a property to the component's property manager. More...

bool	PropertyAddReferenceProperty (FBComponent arg1, FBProperty arg2)
	Add a reference property to the component's property manager. More...

object	PropertyCreate (FBComponent arg1, str arg2, FBPropertyType arg3, str arg4, object arg5, object arg6, FBProperty arg7)
	Create user or dynamic property. More...

	PropertyRemove (FBComponent arg1, FBProperty arg2)
	Remove a Property from the component's Property manager. More...

	SetObjectFlags (FBComponent arg1, FBObjectFlag arg2)
	SetObjectFlags. More...

	SetObjectStatus (FBComponent arg1, FBObjectStatus arg2, object arg3)
	Enable/Disable a specific Object Status. More...

	HardSelect (FBComponent arg1)
	HardSelect. More...

object	GetOwnerFileReference (FBComponent arg1)
	Get the owner FileReference object. More...

	__init__ (...)
	Constructor. More...

Public Member Functions inherited from FBPlug
	__reduce__ ()

bool	BeginChange (FBPlug arg1)
	Begins a change on multiple plugs. More...

str	ClassName (FBPlug arg1)
	internal System vars. More...

bool	ConnectDst (FBPlug arg1, FBPlug arg2, FBConnectionType arg3)
	Add a destination connection. More...

bool	ConnectDstAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4)
	Add a destination connection. More...

bool	ConnectSrc (FBPlug arg1, FBPlug arg2, FBConnectionType arg3)
	Add a source connection. More...

bool	ConnectSrcAt (FBPlug arg1, object arg2, FBPlug arg3, FBConnectionType arg4)
	Add a source connection. More...

	DisconnectAllDst (FBPlug arg1)
	Remove all destination connections. More...

	DisconnectAllSrc (FBPlug arg1)
	Remove all source connections. More...

bool	DisconnectDst (FBPlug arg1, FBPlug arg2)
	Remove a destination connection. More...

bool	DisconnectDstAt (FBPlug arg1, object arg2)
	Remove a destination connection at a specified index. More...

bool	DisconnectSrc (FBPlug arg1, FBPlug arg2)
	Remove a source connection. More...

bool	DisconnectSrcAt (FBPlug arg1, object arg2)
	Remove a source connection at a specified index. More...

	EndChange (FBPlug arg1)
	Ends a change on multiple plugs. More...

object	GetDst (FBPlug arg1, object arg2)
	Get a destination connection's plug at specified index. More...

int	GetDstCount (FBPlug arg1)
	Get destination connection count. More...

FBConnectionType	GetDstType (FBPlug arg1, object arg2)
	Get a destination connection's type at specified index. More...

object	GetOwned (FBPlug arg1, object arg2)
	Get the owned plug at specified index. More...

int	GetOwnedCount (FBPlug arg1)
	Get the owned plug count. More...

object	GetOwner (FBPlug arg1)
	Get the owner of this plug. More...

object	GetSrc (FBPlug arg1, object arg2)
	Get a source connection's plug at specified index. More...

int	GetSrcCount (FBPlug arg1)
	Get source connection count. More...

FBConnectionType	GetSrcType (FBPlug arg1, object arg2)
	Get a source connection's type at specified index. More...

bool	Is (FBPlug arg1, object arg2)
	Is( int pTypeId ) More...

bool	IsSDKComponent (FBPlug arg1)
	Return whether or not item is an SDK component. More...

	MoveSrcAt (...)

bool	ReplaceDstAt (FBPlug arg1, object arg2, FBPlug arg3)
	Replace a destination connection at a specified index. More...

bool	ReplaceSrcAt (FBPlug arg1, object arg2, FBPlug arg3)
	Replace a source connection at a specified index. More...

bool	SwapSrc (FBPlug arg1, object arg2, object arg3)
	Swap source connection at index A with source connection at index B. More...

	SetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3)
	Set the plug's self modification flag. More...

bool	GetSelfModified (FBPlug arg1, FBPlugModificationFlag arg2)
	Tell if the plug's self has changed. More...

	SetContentModified (FBPlug arg1, FBPlugModificationFlag arg2, object arg3)
	Set the plug's owned property/object's modification flag. More...

bool	GetContentModified (FBPlug arg1, FBPlugModificationFlag arg2)
	Tell if the plug's content has changed. More...

int	GetPlugConnectionModifiedList (FBPlug arg1, FBPlugList arg2, FBPlugModificationFlag arg3, object arg4)
	Get plug's modified src/dst property/object connection added/removed List. More...

bool	RevertModification (FBPlug arg1, FBPlugModificationFlag arg2)
	Revert the plug's modification to original status. More...

	__init__ (...)

method	staticmethod (function)

Public Member Functions inherited from FBPythonWrapper
	__reduce__ ()

	__init__ (...)

Public Attributes
ORSDK2018::FBString	LastError
	Last error string. More...

Public Attributes inherited from FBComponent
object	OwnerNamespace

ORSDK2018::FBPropertyListComponent	Components
	List: List of components. More...

ORSDK2018::FBPropertyString	Name
	Read Write Property: Unique name of object. More...

ORSDK2018::FBPropertyString	LongName
	Read Write Property: Name and namespace for object. More...

object	FullName

ORSDK2018::FBPropertyListComponent	Parents
	List: Parents. More...

ORSDK2018::FBPropertyManager	PropertyList
	Read Only Property: Manages all of the properties for the component. More...

FBPropertyBool	Selected
	Read Write Property: Selected property. More...

Public Attributes inherited from FBPythonWrapper
object	OnUnbind

Member Function Documentation

__init__ ( ... )

Constructor.

Python Docstring:

Raises an exception
This class cannot be instantiated from Python

C++ Signature:

 FBAssetItem(const char * pName, HIObject pObject = ((void *) 0))

Parameters

pName	Name of Command.
pObject	Internal parent object to own FBComponent (default is NULL).

See the C++ reference

__reduce__ ( )

bool CheckIn	(	FBAssetItem	arg1,
		str	arg2,
		object	arg3,
		object	arg4
	)

Checks in this item and all its children (if this is a folder item).

Python Docstring:

CheckIn( (FBAssetItem)arg1 [, (str)arg2 [, (object)arg3 [, (object)arg4]]]) -> bool

C++ Signature:

bool CheckIn(const ORSDK2018::FBString & pComment = "", bool pKeepCheckedOut = false, bool pSilent = false)

Parameters

pComment	Comment to be applied for the check in.
pKeepCheckedOut	Flag that indicates whether the item will be kept checked out.
pSilent	If pSilent is set to true, no dialog will be displayed by this method.

Returns: A boolean indicating if the operation was successful.

See the C++ reference

bool CheckOut	(	FBAssetItem	arg1,
		str	arg2,
		object	arg3,
		object	arg4
	)

Checks out this item and it's childs (if this is a folder item) and makes them writeable on the local disk.

Python Docstring:

CheckOut( (FBAssetItem)arg1 [, (str)arg2 [, (object)arg3 [, (object)arg4]]]) -> bool

C++ Signature:

bool CheckOut(const ORSDK2018::FBString & pComment = "", bool pDontGetLocal = false, bool pSilent = false)

Parameters

pComment	Comment to be applied for the check out.
pDontGetLocal	Indicate if local copy should retrieved or not.
pSilent	If pSilent is set to true, no dialog will be displayed by this method.

Returns: A boolean indicating if the operation was successful.

See the C++ reference

bool GetLatest	(	FBAssetItem	arg1,
		object	arg2,
		object	arg3
	)

Obtain the latest version of the item from the server.

Python Docstring:

GetLatest( (FBAssetItem)arg1 [, (object)arg2 [, (object)arg3]]) -> bool

C++ Signature:

bool GetLatest(bool pReplaceCheckedOut = false, bool pSilent = false)

Parameters

pReplaceCheckedOut	Whether to replace the checked out file or not.
pSilent	If pSilent is set to true, no dialog will be displayed by this method.

Returns: A boolean indicating if the operation was successful.

See the C++ reference

str GetLocalPath ( FBAssetItem arg1 )

Get the path to this item on the local hard disk.

Python Docstring:

GetLocalPath( (FBAssetItem)arg1) -> str

C++ Signature:

ORSDK2018::FBString GetLocalPath()

Returns: The path as an FBString.

See the C++ reference

str GetName ( FBAssetItem arg1 )

Get the name of this item (file name or folder name).

Python Docstring:

GetName( (FBAssetItem)arg1) -> str

C++ Signature:

ORSDK2018::FBString GetName()

Returns: The name of the item, as an FBString.

See the C++ reference

object GetParent ( FBAssetItem arg1 )

Get the parent folder of this item.

Python Docstring:

GetParent( (FBAssetItem)arg1) -> object

C++ Signature:

ORSDK2018::FBAssetFolder * GetParent()

Returns: An FBAssetFolder* if the parent was found, or NULL if this is the root item.

See the C++ reference

str GetServerPath ( FBAssetItem arg1 )

Get the path to this item on the database.

Python Docstring:

GetServerPath( (FBAssetItem)arg1) -> str

C++ Signature:

ORSDK2018::FBString GetServerPath()

Returns: The server path as an FBString.

See the C++ reference

ShowHistory ( FBAssetItem arg1 )

Display a dialog with this item history.

Python Docstring:

ShowHistory( (FBAssetItem)arg1) -> None

C++ Signature:

void ShowHistory()

See the C++ reference

ShowProperties ( FBAssetItem arg1 )

Display a dialog showing the properties of this item.

Python Docstring:

ShowProperties( (FBAssetItem)arg1) -> None

C++ Signature:

void ShowProperties()

See the C++ reference

bool UndoCheckOut	(	FBAssetItem	arg1,
		object	arg2,
		object	arg3
	)

Cancel the last check out operation.

Python Docstring:

UndoCheckOut( (FBAssetItem)arg1 [, (object)arg2 [, (object)arg3]]) -> bool

C++ Signature:

bool UndoCheckOut(bool pReplaceLocalFile = true, bool pSilent = false)

Parameters

pReplaceLocalFile	Flag indicating if the local item(s) should be replaced by the server version.
pSilent	If pSilent is set to true, no dialog will be displayed by this method.

Returns: A boolean indicating if the operation was successful.

See the C++ reference

Member Data Documentation

ORSDK2018::FBString LastError

Last error string.

See the C++ reference

FBAssetItem Class Reference

Class Description

Public Member Functions

Public Attributes

Member Function Documentation

Member Data Documentation
