#include <fbxloadingstrategy.h>

Class Description

Abstract class used to implemented some plug-in loading strategy.

A loading strategy dictate how some plug-ins will be loaded for instance. We could have a simple strategy that loads only a single dll on PC. We could also implement a strategy that load multiple dlls from a directory.

Definition at line 31 of file fbxloadingstrategy.h.

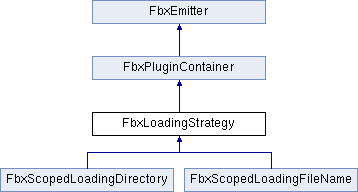

Inheritance diagram for FbxLoadingStrategy:

Public Types
enum	EState { eAllLoaded, eNoneLoaded, eAllFailed, eSomeFailed }
	Result state of loading plug-in. More...

Public Types inherited from FbxPluginContainer
typedef FbxIntrusiveList< FbxPlugin >	PluginList
	Definition of a plug-in list. More...

Public Member Functions
Public interface

EState	Load (FbxPluginData &pData)
	Execute the operation of loading the plug-in(s). More...

void	Unload ()
	Execute the operation of unloading the plug-in(s). More...

Public Member Functions inherited from FbxPluginContainer
void	Register (FbxPlugin &pPlugin)
	The registration function that must be called when the module containing the plug-in is loaded. More...

void	Unregister (FbxPlugin &pPlugin)
	The unregistration function that must be called when the module containing the plug-in is unloaded. More...

const PluginList &	GetPlugins () const
	Const accessor to the list of plug-ins owned by the container. More...

PluginList &	GetPlugins ()
	Accessor to the list of plug-ins owned by the container. More...

Public Member Functions inherited from FbxEmitter
void	AddListener (FbxEventHandler &pHandler)
	Add the specified event handler to current emitter list. More...

void	RemoveListener (FbxEventHandler &pHandler)
	Remove the specified event handler from current emitter list. More...

template<typename EventType >
void	Emit (const EventType &pEvent) const
	Emit an event with the specified the event type. More...

Protected Member Functions
User implementation

virtual bool	SpecificLoad (FbxPluginData &pData)=0
	Called by the Load method, it contains the specific user implementation strategy to load the desired plug-in(s). More...

virtual void	SpecificUnload (FbxPluginData &pData)=0
	Called by the Unload method, it contains the specific user implementation strategy to unload the desired plug-in(s). More...

Protected Attributes
EState	mPluginsLoadedState
	Whether the plugin is loaded or not. More...

Member Enumeration Documentation

◆ EState

enum EState

Result state of loading plug-in.

Enumerator
eAllLoaded	Plug-ins are loaded.
eNoneLoaded	No plug-ins are loaded.
eAllFailed	Plug-ins failed to load.
eSomeFailed	Not all found plug-ins are loaded.

Definition at line 36 of file fbxloadingstrategy.h.

     {
         eAllLoaded,
         eNoneLoaded,
         eAllFailed,
         eSomeFailed
     };

Member Function Documentation

◆ Load()

EState Load ( FbxPluginData & pData )

Execute the operation of loading the plug-in(s).

The way it is executed is determined by the specific implementations.

Parameters

pData Plug in data that can be access inside the plug-ins.

Returns: The state of the loading action.

◆ Unload()

void Unload ( )

Execute the operation of unloading the plug-in(s).

The way it is executed is determined by the specific implementations.

◆ SpecificLoad()

virtual bool SpecificLoad ( FbxPluginData & pData )

protectedpure virtual

Called by the Load method, it contains the specific user implementation strategy to load the desired plug-in(s).

Parameters

pData Plug in data that can be access inside the plug-ins.

Returns: If the plugin loading is successful return true, otherwise return false

◆ SpecificUnload()

virtual void SpecificUnload ( FbxPluginData & pData )

protectedpure virtual

Called by the Unload method, it contains the specific user implementation strategy to unload the desired plug-in(s).

Member Data Documentation

◆ mPluginsLoadedState

EState mPluginsLoadedState

protected

Whether the plugin is loaded or not.

Definition at line 76 of file fbxloadingstrategy.h.

The documentation for this class was generated from the following file:

fbxsdk/core/fbxloadingstrategy.h
