Total Heat Generation on Transformer

Hide the casing and the air part.

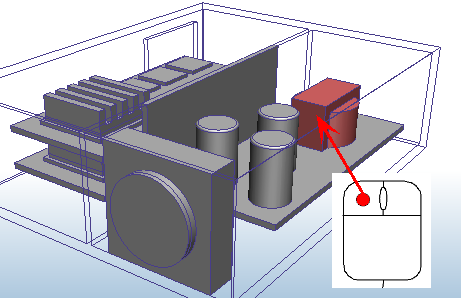

Select the transformer.

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

• Click Edit from the context toolbar:

• Click Edit from the Boundary Conditions context panel:

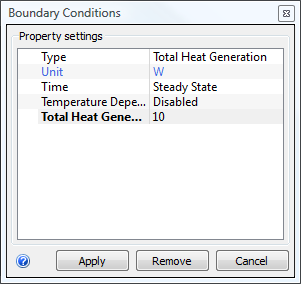

Type = Total Heat Generation

Units = W

Total Heat Generation = 10

Click Apply.
