Total Heat Generation on Capacitors

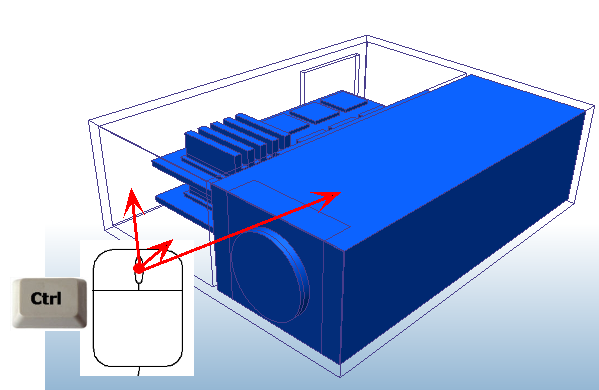

Hide the casing and the two air parts

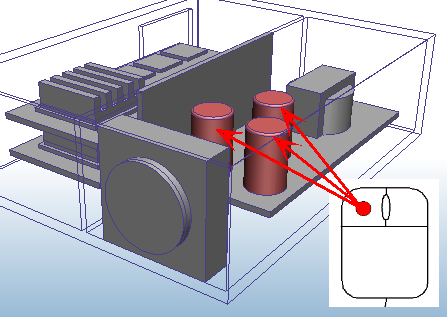

Select the three capacitors

Open the Boundary Conditions quick edit dialog in ONE of the following ways:

• Click Edit from the context toolbar:

• Click Edit from the Boundary Conditions context panel:

Type = Total Heat Generation

Units = W

Total Heat Generation = 3

Click Apply.
