Install Vault Data Standard

Vault Data Standard is a data control feature helping you to ensure design relevant information is captured in a standardized format during the data entry process in Vault Client, Inventor, and AutoCAD.

In order to be able to install Vault Data Standard you need to have required prerequisite installed on the machine before the actual installation of Vault Data Standard. The prerequisites are:

• Vault Data Standard 2019: Autodesk® Vault Professional 2019 (Client) or Autodesk® Vault Workgroup 2019 (Client)
• Autodesk® Vault Data Standard for AutoCAD 2019: Autodesk® AutoCAD 2019
• Autodesk® Vault Data Standard for Inventor 2019: Autodesk® Inventor 2019

1. Launch the Vault installation software.

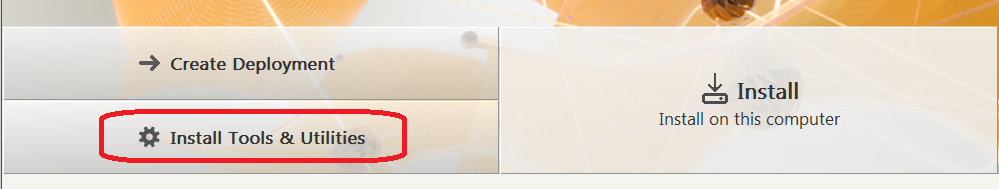

2. Click Install Tools & Utilities.



3. Accept the License and Services Agreement, and click Next.

4. Check the boxes for components you want to install (Vault Data Standard, Vault Data Standard for AutoCAD, or Vault Data Standard for Inventor).

5. Click Install.
