UVW モディファイヤのギズモの位置を、選択した面に合わせる方法はありますか。

MAXScript に関する質問と回答 > 編集可能メッシュの操作 > UVW モディファイヤのギズモの位置を、選択した面に合わせる方法はありますか。

次のコードは、UVW_Map モディファイヤの「法線位置合わせ」機能を実装します。[法線位置合わせ](Normal Align)ボタンを押しても、MAXScript には直接アクセスできません。この関数は置換関数として使用でき、ベクトルの乗積の有用性を理解する場合に役立ちます。

スクリプト:

fn alignUVGizmo theObj theFace =
(

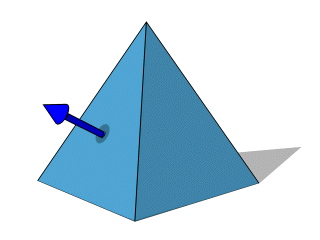

-- First get the face normal vector.
-- It is shown in BLUE on the image
faceNormal = in coordsys theObj (getFaceNormal theObj theFace)

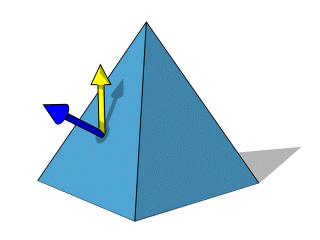

-- This is the desired up vector in world space
-- It is shown in YELLOW on the image
worldUpVector = [0,0,1]

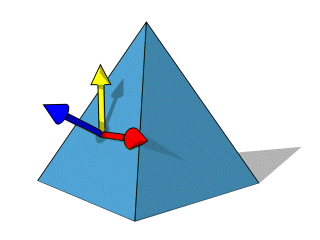

-- Now get the cross-product of the face normal and the up vector.
-- This will give you a vector that is perpendicular to the plane defined
-- by the normal and the up vector. Normalize it to get a normal vector
-- pointing to the right.
-- It is shown in RED on the image
rightVector = normalize (cross worldUpVector faceNormal)

-- Now using the face normal and the new vector,
-- get a vector that is perpendicular to the plane defined by the two.
-- This is the "local up vector", the vector that is the projection of
-- the world up vector on the face you selected. This one is perpendicular
-- to both the face normal and the right vector, and you have 3 normals now
-- that define the X, Y and Z of your new orthogonal coordinate system
-- for the UVW gizmo!
-- Note that this new vector can be seen as the SHADOW of the World Up vector
-- on the face of the object in the above image.

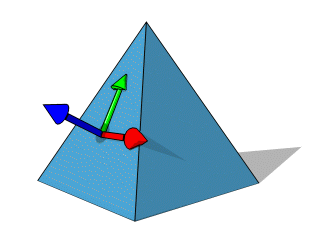

-- It is now displayed in green in the image below:
upVector = normalize ( cross rightVector faceNormal )

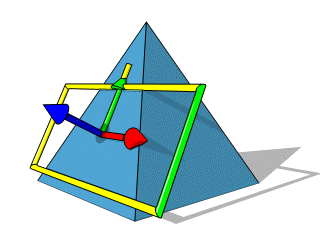

-- Using the 3 vectors, define a matrix3 value which represents the
-- coordinate system of the gizmo. The face normal is the Z axis,
-- the right vector is the X axis, and the local up vector is the Y axis:
theMatrix = matrix3 rightVector upVector faceNormal [0,0,0]

theMap = Uvwmap()
modPanel.addModToSelection theMap ui: on
theMap.gizmo.transform = theMatrix
)
