2D Adaptive Clearing

2D Adaptive Clearing is a roughing operation using a toolpath that "flows". You can clear a cavity, open pocket or the area around a boss. Adaptive Clearing eliminates all conventional cutting moves and any sharp changes in direction. The machining area can be selected from Edges, Sketches or a Solid face.



Access:

Ribbon: CAM tab 2D Milling panel 2D Adaptive

Tool tab settings

Coolant

Select the type of coolant used with the machine tool. Not all types will work with all machine postprocessors.

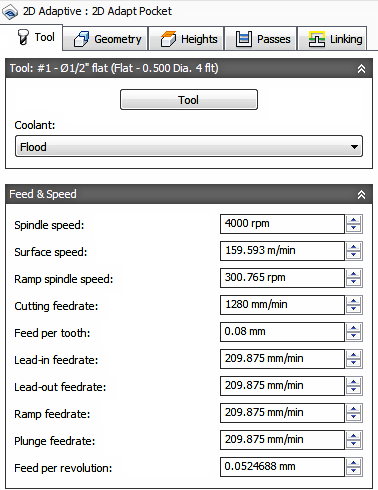

Feed & Speed

Spindle and Feedrate cutting parameters.

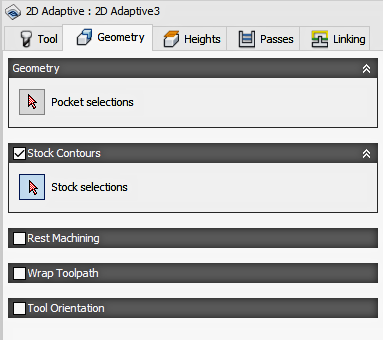

Geometry tab settings

Geometry

Select Faces, Edges or Sketches. You can remove stock from the inside of a pocket or the outside of a standing boss.

  1. Closed Pocket Machining
  2. Open Pocket Machining
  3. Standing Boss Machining

Pocket Selection

Select any Face, Edge or Sketch to define the machining boundary. Use Edge selection for areas with holes or pockets inside of pockets. For standing bosses select the outer boundary of the boss and check the Stock Contours option shown below. The toolpath will be calculated between the selected boundary and the outer stock area.

Select Faces, Edges or Sketches. Use Edge selection for areas with holes or pockets inside of pockets.

  1. Closed Pocket Face Selection
  2. Open Pocket Face Selection
  3. Standing Boss Edge Selection. Shown with stock boundary

Stock Contours

When checked, the toolpath is calculated to consider the boundaries of the defined Stock or a selected boundary. The default boundary is the Stock box specified in the Setup. You can also select Edges from the model or a Sketch boundary. This provides additional clearance for the Lead in and Lead out moves. This can limit or extend the stock machining area. Leave unchecked for closed boundary pockets.

Stock Selections - Select a closed boundary to define the machining area. No selection is needed to machine the Stock box specified in the Setup. Selecting a boundary larger than the stock extends the cutting area. This can be useful for irregular stock sizes. The selected machining boundary can be any shape.

Select Edges or Sketches to define the cutting boundary.

  1. Calculated from the Stock - No selection required
  2. A Sketch larger than the Stock extends the cutting area
  3. The selected area can be any size or shape
Note: This is not a containment boundary, since the tool will approach from outside the selected area.

Rest Machining

When checked this limits the operation to only remove material that a previous tool or operation could not remove.

Rest stands for REmaining STock.

Requires additional information about the tool previously used to cut the boundary.

  1. Area to Machine - Pocket shown in green.
  2. Previous Operation - Not all stock is removed.
  3. Rest Machining Off - All areas are machined.
  4. Rest Machining On - Previously un-cut areas are machined.

Tool Orientation

Not available in Inventor CAM Express

Specifies how the tool orientation is determined using a combination of triad orientation and origin options.

The Orientation drop-down menu provides the following options to set the orientation of the X, Y, and Z triad axes:

The Origin drop-down menu offers the following options for locating the triad origin:

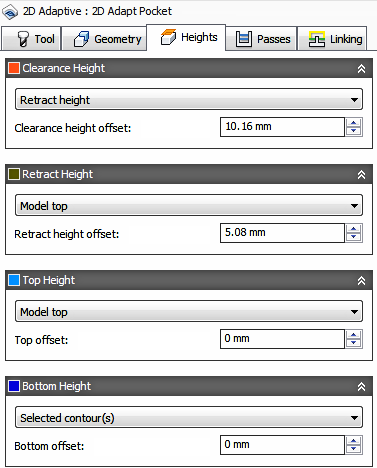

Heights tab settings

Clearance Height

The Clearance height is the first height the tool rapids to on its way to the start of the tool path.



Clearance Height

Clearance height offset:

The Clearance height offset is applied and is relative to the Clearance height selection in the above drop-down list.

Retract Height

Retract height sets the height that the tool moves up to before the next cutting pass. Retract height should be set above the Feed height and Top. Retract height is used together with the subsequent offset to establish the height.



Retract Height

Retract height offset:

Retract height offset is applied and is relative to the Retract height selection in the above drop-down list.

Top Height

Top height sets the height that describes the top of the cut. Top height should be set above the Bottom. Top height is used together with the subsequent offset to establish the height.



Top Height

Top offset:

Top offset is applied and is relative to the Top height selection in the above drop-down list.

Bottom Height

Bottom height determines the final machining height/depth and the lowest depth that the tool descends into the stock. Bottom height needs to be set below the Top. Bottom height is used together with the subsequent offset to establish the height.



Bottom Height

Bottom offset:

Bottom offset is applied and is relative to the Bottom height selection in the above drop-down list.

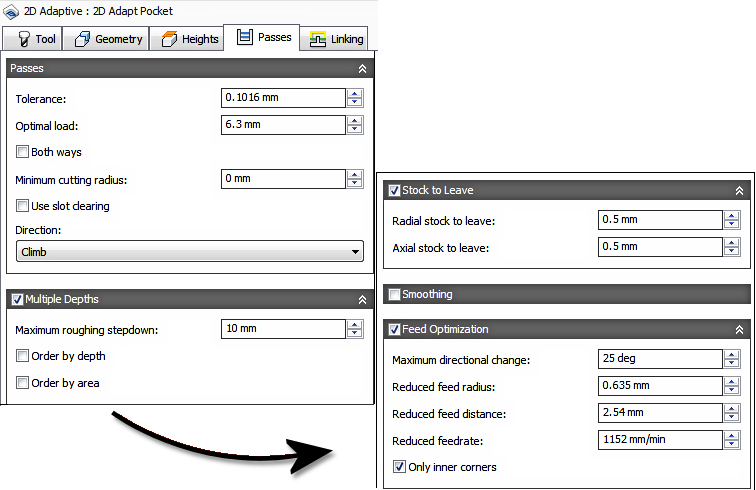

Passes tab settings

Tolerance:

The tolerance used when linearizing geometry such as splines and ellipses. The tolerance is taken as the maximum chord distance.



Loose Tolerance .100



Tight Tolerance .001

CNC machine contouring motion is controlled using line G1 and arc G2 G3 commands. To accommodate this, CAM approximates spline and surface toolpaths by linearizing them creating many short line segments to approximate the desired shape. How accurately the toolpath matches the desired shape depends largely on the number of lines used. More lines result in a toolpath that more closely approximates the nominal shape of the spline or surface.

Data Starving

It is tempting to always use very tight tolerances, but there are trade-offs including longer toolpath calculation times, large G-code files, and very short line moves. The first two are not much of a problem because Inventor CAM calculates very quickly, and most modern controls have at least 1MB of RAM. However, short line moves, coupled with high feedrates, may result in a phenomenon known as data starving.

Data starving occurs when the control becomes so overwhelmed with data that it cannot keep up. CNC controls can only process a finite number of lines of code (blocks) per second. That can be as few as 40 blocks/second on older machines and 1,000 blocks/second or more on a newer machine like the Haas Automation control. Short line moves and high feedrates can force the processing rate beyond what the control can handle. When that happens, the machine must pause after each move and wait for the next servo command from the control.

Optimal Load

The maximum amount of engagement the Adaptive toolpath should maintain. This can be considered the stepover amount, but Adaptive High Speed Machining will vary the stepover to reduce overloading the tool.

Traditional pocket toolpaths can overload the tool. Adaptive Clearing results in 40% faster material removal, allowing you to take longer depth cuts with full confidence. High Speed Machining - HSM, Adaptive eliminates spikes in tool engagement that could break cutters.

Adaptive HSM

Adaptive High Speed <br>clearing toolpath

Traditional Pocket <br>clearing toolpath

Both Ways

Specifies that the operation uses both Climb and Conventional milling to machine open profiles.

Minimum cutting radius:



With Minimum cutting radius set

With Minimum cutting radius set - sharp corners in the toolpath are avoided minimizing chatter in finished parts.



Without Minimum cutting radius set

Without Minimum cutting radius set - the toolpath attempts to remove material anywhere the selected tool can reach. This produces sharp corners in the toolpath that often leads to chatter in the machined part.

Note: Setting this parameter leaves more material in internal corners requiring subsequent rest machining operations with a smaller tool.

Use slot clearing

Enable this setting to start pocket clearing with a slot along its middle before continuing with a spiral motion towards the pocket wall. This feature can be used to reduce linking motion at corners for some pockets.



Use slot clearing enabled



Use slot clearing disabled

Slot clearing width:

The width of the initial clearing slot along the middle of the pocket before continuing with a spiral motion towards the pocket wall.



Slot clearing width

Direction:

The Direction option lets you control if Inventor CAM should try to maintain either Climb or Conventional milling.

Remember: Depending on the geometry, it is not always possible to maintain climb or conventional milling throughout the entire toolpath.

Climb

Select Climb to machine all the passes in a single direction. When this method is used, Inventor CAM attempts to use climb milling relative to the selected boundaries.

Left (climb milling)

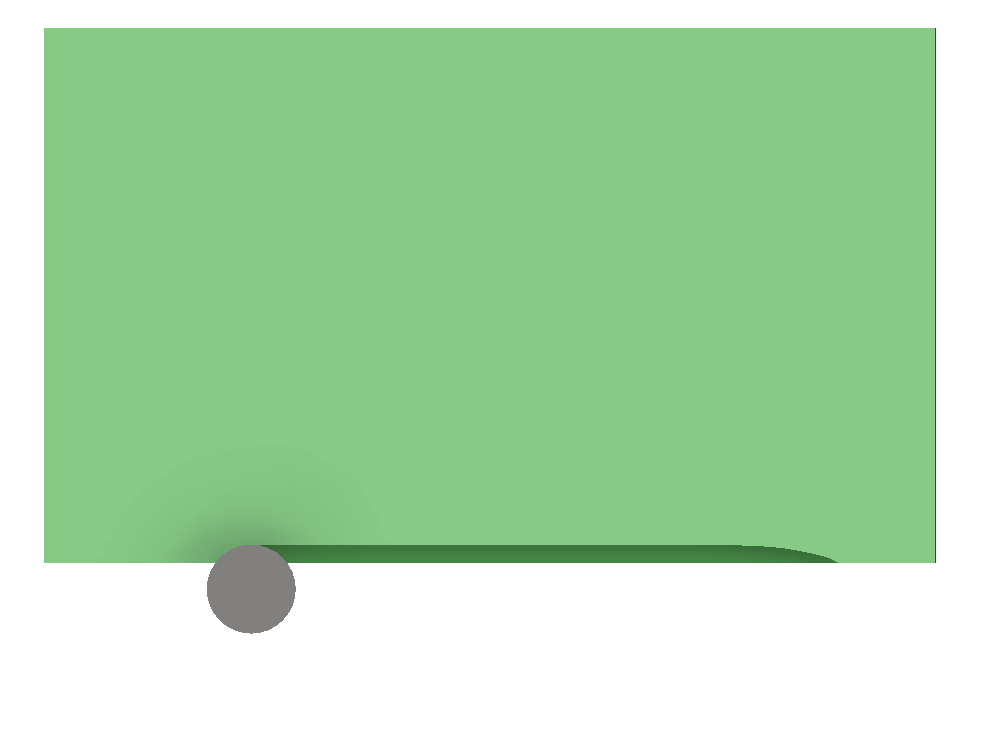

Climb Milling

Right (conventional milling)

Conventional Milling

Multiple Depths

Specifies that multiple depths should be taken.



With Multiple Depth cuts



Without Multiple Depth cuts

Note: Adaptive clearing strategies allow for much more aggressive depth cuts than legacy 2D pockets.

Maximum roughing stepdown:

Specifies the distance for the maximum stepdown between Z-levels. The maximum stepdown is applied to the full depth, less any remaining stock and finish pass amounts.



  • Final rough pass may be less than the Max Stepdown
  • Shown without finishing stepdown
  • Shown without additional Radial stock

Order by depth

Specifies that the passes should be ordered top down.



Disabled



Enabled

Stock to Leave



Positive

Positive Stock to Leave - The amount of stock left after an operation to be removed by subsequent roughing or finishing operations. For roughing operations, the default is to leave a small amount of material.



None

No Stock to Leave - Remove all excess material up to the selected geometry.



Negative

Negative Stock to Leave - Removes material beyond the part surface or boundary. This technique is often used in Electrode Machining to allow for a spark gap, or to meet tolerance requirements of a part.

Radial (wall) stock to leave

The Radial stock to leave parameter controls the amount of material to leave in the radial (perpendicular to the tool axis) direction, i.e. at the side of the tool.



Radial stock to leave



Radial and axial stock to leave

Specifying a positive radial stock to leave results in material being left on the vertical walls and steep areas of the part.

For surfaces that are not exactly vertical, Inventor CAM interpolates between the axial (floor) and radial stock to leave values, so the stock left in the radial direction on these surfaces might be different from the specified value, depending on surface slope and the axial stock to leave value.

Changing the radial stock to leave automatically sets the axial stock to leave to the same amount, unless you manually enter the axial stock to leave.

For finishing operations, the default value is 0 mm / 0 in, i.e. no material is left.

For roughing operations, the default is to leave a small amount of material that can then be removed later by one or more finishing operations.

Negative stock to leave

When using a negative stock to leave, the machining operation removes more material from your stock than your model shape. This can be used to machine electrodes with a spark gap, where the size of the spark gap is equal to the negative stock to leave.

Both the radial and axial stock to leave can be negative numbers. However, the negative radial stock to leave must be less than the tool radius.

When using a ball or radius cutter with a negative radial stock to leave that is greater than the corner radius, the negative axial stock to leave must be less than or equal to the corner radius.

Axial (floor) stock to leave

The Axial stock to leave parameter controls the amount of material to leave in the axial (along the Z axis) direction, i.e. at the end of the tool.



Axial stock to leave



Both radial and axial stock to leave

Specifying a positive axial stock to leave results in material being left on the shallow areas of the part.

For surfaces that are not exactly horizontal, Inventor CAM interpolates between the axial and radial (wall) stock to leave values, so the stock left in the axial direction on these surfaces might be different from the specified value depending on surface slope and the radial stock to leave value.

Changing the radial stock to leave automatically sets the axial stock to leave to the same amount, unless you manually enter the axial stock to leave.

For finishing operations, the default value is 0 mm / 0 in, i.e. no material is left.

For roughing operations, the default is to leave a small amount of material that can then be removed later by one or more finishing operations.

Negative stock to leave

When using a negative stock to leave, the machining operation removes more material from your stock than your model shape. This can be used to machine electrodes with a spark gap, where the size of the spark gap is equal to the negative stock to leave.

Both the radial and axial stock to leave can be negative numbers. However, when using a ball or radius cutter with a negative radial stock to leave that is greater than the corner radius, the negative axial stock to leave must be less than or equal to the corner radius.

Smoothing



Smoothing Off



Smoothing On

Smoothing is used to reduce code size without sacrificing accuracy. Smoothing works by replacing collinear lines with one line and tangent arcs to replace multiple lines in curved areas.

The effects of smoothing can be dramatic. G-code file size may be reduced by as much as 50% or more. The machine will run faster and more smoothly and surface finish improves. The amount of code reduction depends on how well the toolpath lends itself to smoothing. Toolpaths that lay primarily in a major plane (XY, XZ, YZ), like parallel paths, filter well. Those that do not, such as 3D Scallop, are reduced less.

Smoothing tolerance:

Specifies the smoothing filter tolerance.

Smoothing works best when the Tolerance (the accuracy with which the original linearized path is generated) is equal to or greater than the Smoothing (line arc fitting) tolerance.

Note: Total tolerance, or the distance the toolpath can stray from the ideal spline or surface shape, is the sum of the cut Tolerance and Smoothing Tolerance. For example, setting a cut Tolerance of .0004 in and Smoothing Tolerance of .0004 in means the toolpath can vary from the original spline or surface by as much as .0008 in from the ideal path.

Feed Optimization

Specifies that the feed should be reduced at corners.

Maximum directional change:

Specifies the maximum angular change allowed before the feedrate is reduced.

Reduced feed radius:

Specifies the minimum radius allowed before the feed is reduced.

Reduced feed distance:

Specifies the distance to reduce the feed before a corner.

Reduced feedrate:

Specifies the reduced feedrate to be used at corners.

Only inner corners

Enable to only reduce the feedrate on inner corners.

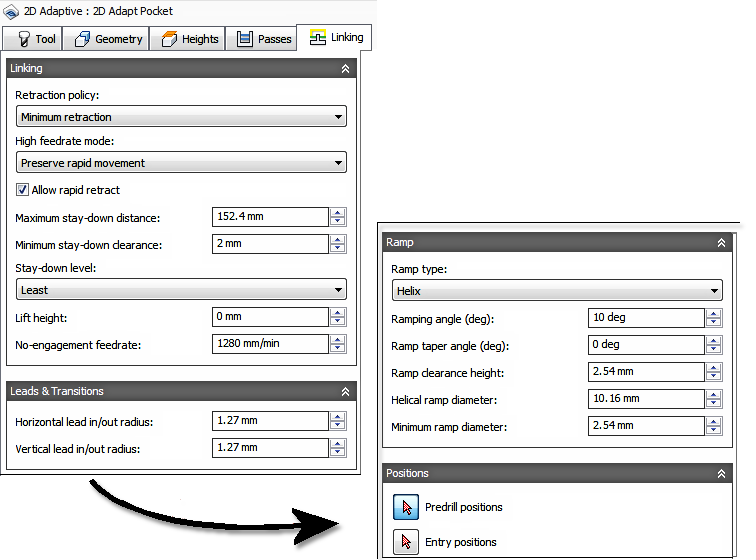

Linking tab settings

Retraction Policy

Controls how the tool will retract between cutting moves. Full retract moves to the Retract Height as specified on the Heights tab. Minimum retracts to clear the cutting surface.

Full Retract

Minimum Retract

High feedrate mode:

Specifies when rapid movements should be output as true rapids (G0) and when they should be output as high feedrate movements (G1).

This parameter is usually set to avoid collisions at rapids on machines which perform "dogleg" movements at rapid.

High feedrate:

The feedrate to use for rapids movements output as G1 instead of G0.

Allow rapid retract

When enabled, retracts are done as rapid movements (G0). Disable to force retracts at lead-out feedrate.

Maximum stay-down distance:

Specifies the maximum distance allowed for stay-down moves.



1" Maximum stay-down



2" Maximum stay-down distance

Stay-down level:

Use this setting to control when to stay down rather than doing retracts when moving around obstacles. Generally, you will want the Adaptive strategy to stay-down more if your CNC machine does slow retracts compared to high feed moves. In such cases, increase the level value in the Stay-down level: drop-down menu. Values increase by increments of 10% with the Least setting at 0% and the Most setting at 100%.

Remember: Keep in mind that calculation time can increase significantly as you increase the stay-down level.

Lift height:

Specifies the lift distance during repositioning moves.



Lift height 0



Lift height .1 in

No-engagement feedrate:

Specifies the feedrate used for movements where the tool is not in engagement on the material, but is also not retracted.

Horizontal lead-in and lead-out radius:

Specifies the radius for horizontal lead-in and lead-out moves.



Horizontal lead-in radius



Horizontal lead-out radius

Vertical lead-in and lead-out radius:

The vertical arc smoothing radius it goes from the entry move onto the toolpath and off of the toolpath.



Vertical lead-in radius



Vertical lead-out radius

Ramp type:

Specifies how the cutter moves down for each depth cut.



Plunge Outside Stock



Zig-Zag

Notice the smooth transitions on the Zig-Zag ramp type.



Predrill

To use the Predrill option, Predrill location(s) must be defined.



Profile



Plunge



Smooth Profile



Helix

Ramping Angle (deg)

Specifies the maximum ramping angle of the helix during the cut.

Ramp Taper Angle

Creates a conical helix entry into the part. Excellent for chip clearance.

Maximum Ramp Stepdown

Specifies the maximum stepdown per revolution on the ramping profile. This parameter allows the tool load to be constrained when doing full-width cuts during ramping.

Ramp Clearance Height

The Height above the stock where the helix start its ramping move.

Helical Ramp Diameter

The maximum diameter to use for a helical entry into the cavity.

An optimal value causes the tool to overlap it's center, while still creating the maximum helical bore for the entry into the cavity. The goal is for good chip evacuation. If the value is bigger than the diameter of the tool it can leave a boss standing in the center of the helix.

Value of 1.8 x the Dia.

Value of 0.8 x the Dia.

Minimum Ramp Diameter

The smallest Helix Ramp Diameter that is acceptable.

This value should always be smaller than the Helix Ramp Diameter, so the system can calculate a range that fits the available pocket or channel. Smaller diameters can reduce the chip evacuation, create jerking machine motion and can cause tool breakage.

Predrill positions

Select points where holes have been drilled to provide clearance for the cutter to enter the material.

Entry positions

Select geometry near the location where you want the tool to enter.
