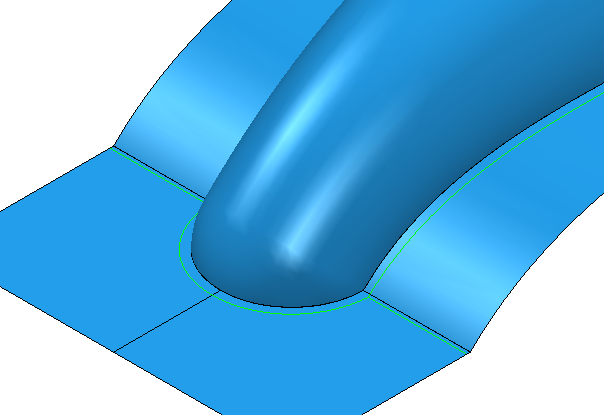

Corner Finishing creates a single-trace toolpath to clean up corners that occur between non-tangential surfaces.
This strategy supports Boundary curves.
The availability of this strategy depends on the machining function you are using.
The Corner finishing and Corner pencil finishing strategies are available for the following machining functions:
PartMaker/SwissCAM and PartMaker/Turn-Mill
- Mill XY Plane
- Mill 5-Axis Plane
- Mill ZY Plane
- Mill End, Polar
PartMaker/Mill
- Mill XY Plane
- Mill 5-Axis Plane
- Mill 4-Axis Plane
On the Strategy dialog, the following pages are available for the Corner pencil finishing strategy:
- Corner pencil finishing — The main page used to define a pencil toolpath.
The remaining pages are common toolpath creation controls.
Tip: Use the Surfacing Defaults dialog to specify the default settings for Advanced Surface Machining toolpaths.
