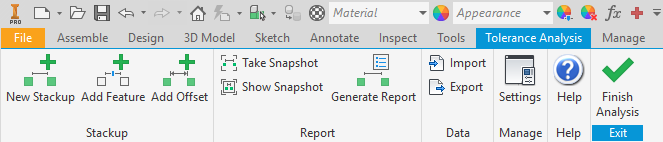

Take a closer look at the Inventor Tolerance Analysis ribbon.
To access the Inventor Tolerance Analysis ribbon, click the Environments tab > Tolerance Analysis.
Stackup
- New Stackup: Creates an automatic or manual tolerance loop and performs a stackup analysis of the dimension scheme.
- Add Feature: Adds features to the stackup dimension scheme.
- Add Offset: Creates additional feature thickness of non-designed material. Specifies a distance or offset between the parts with an associated tolerance.
For more information, see To Define Tolerance Stackups.
Report
Captures and displays a snapshot for each stackup in the report and generates a report.
- Take Snapshot: Saves the current view for inclusion in the analysis report. You can save a new snapshot for each stackup.
- Show Snapshot: Displays the saved view snapshot for the current analysis.
- Generate Report: Creates a shareable HTML report.
For more information, see To Generate Reports Import Export Data.
Data
- Import: Loads previously exported ITOL data.
- Export: Saves the analysis data to an XML-formatted file with an ITOL filename extension.
For more information, see To Generate Reports and Import Export Data.
Manage
Settings: Opens a dialog box that allows you to specify the analysis type and default units in Metric (SI) and US Customary (USC) systems of measurements.
For more information, see To Define Tolerance Analysis Settings.
Help
The Help panel provides easy access to the Autodesk Inventor Tolerance Analysis online help.
