Visual Component base class. More...

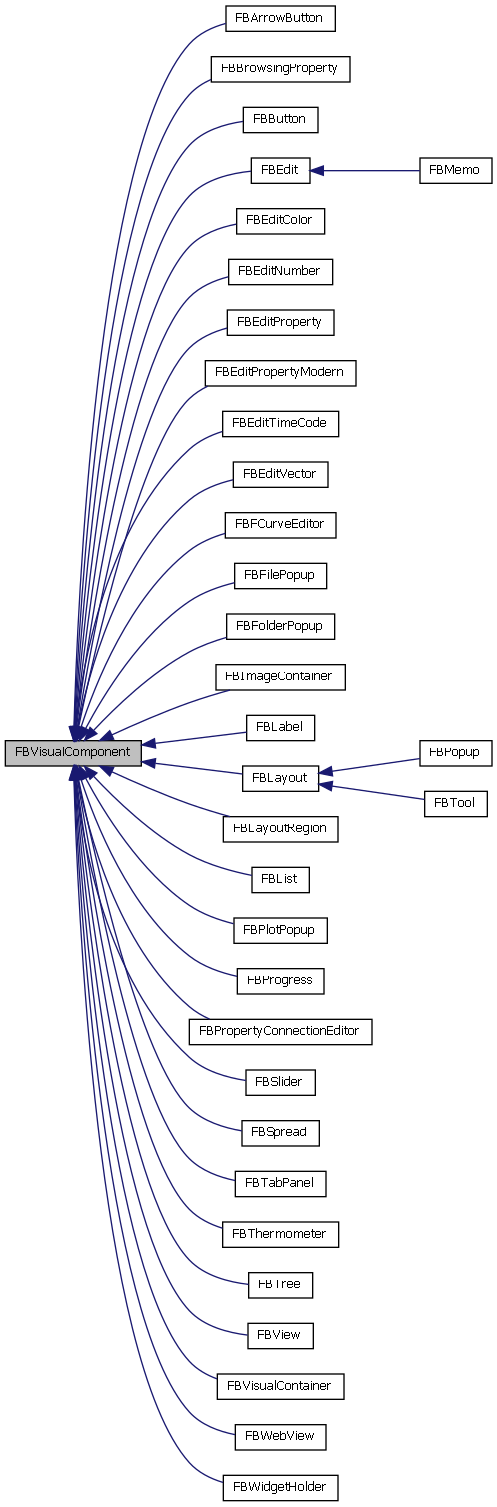

Inheritance diagram for FBVisualComponent:

[legend]

Public Member Functions
	FBVisualComponent ()
	Constructor. More...

bool	AddChild (FBVisualComponent pChild, int pId=0)
	Add a child component. More...

FBVisualComponent	GetChild (int pId=0)
	Get a child component. More...

QWidget	GetQWidgetAddress ()
	Get internal QWidget. More...

bool	IsView ()
	Is component a view? More...

	Refresh (bool pNow=False)
	Refresh component. More...

	ViewExpose ()
	Exposed view callback function. More...

	ViewInput (int pMouseX, int pMouseY, FBInputType pAction, int pButtonKey, int pModifier)
	Input callback function. More...

Public Attributes
str	RegionName
	Read Write Property: Region name. More...

int	RegionOffsetX
	Read Write Property: Region X offset. More...

int	RegionOffsetY
	Read Write Property: Region Y offset. More...

int	RegionOffsetWidth
	Read Write Property: Region width offset. More...

int	RegionOffsetHeight
	Read Write Property: Region height offset. More...

float	RegionRatioX
	Read Write Property: Ratio for X attachment. More...

float	RegionRatioY
	Read Write Property: Ratio for Y attachment. More...

float	RegionRatioWidth
	Read Write Property: Ratio for Width attachment. More...

float	RegionRatioHeight
	Read Write Property: Ratio for Height attachment. More...

FBAttachType	RegionAttachTypeX
	Read Write Property: X Attachment type. More...

FBAttachType	RegionAttachTypeY
	Read Write Property: Y Attachment type. More...

FBAttachType	RegionAttachTypeWidth
	Read Write Property: Width Attachment type. More...

FBAttachType	RegionAttachTypeHeight
	Read Write Property: Height Attachment type. More...

FBVisualComponent	RegionAttachToX
	Read Write Property X Attachment source. More...

FBVisualComponent	RegionAttachToY
	Read Write Property: Y Attachment source. More...

FBVisualComponent	RegionAttachToWidth
	Read Write Property: Width Attachment source. More...

FBVisualComponent	RegionAttachToHeight
	Read Write Property: Height Attachment source. More...

int	RegionPosMaxX
	Read Write Property: Region X position Max More...

int	RegionPosMinX
	Read Write Property: Region X position Min More...

int	RegionPosMaxY
	Read Write Property: Region Y position Max More...

int	RegionPosMinY
	Read Write Property: Region Y position Min More...

str	BorderCaption
	Read Write Property: Caption to display in border. More...

bool	BorderShowCaption
	Read Write Property: Show caption? More...

FBBorderStyle	BorderStyle
	Read Write Property: Style of border. More...

bool	BorderInSet
	Read Write Property: Is border inset? More...

int	BorderWidth
	Read Write Property: Width of border. More...

int	BorderSpacing
	Read Write Property: Spacing of border. More...

float	BorderMaxAngle
	Read Write Property: Max angle for rounding. More...

int	BorderCornerRadius
	Read Write Property: Corner radius (rounded). More...

str	Caption
	Property: Widget caption. More...

bool	Enabled
	Read Write Property: Is visual enabled? More...

int	Height
	Read Write Property: Height. More...

str	Hint
	Read Write Property: Hint to show. More...

int	Left
	Read Write Property: Left coordinate. More...

bool	ReadOnly
	Read Write Property: Is visual component read only? More...

int	Top
	Read Write Property: Top coordinate. More...

bool	Visible
	Read Write Property: Is visual component visible? More...

int	Width
	Read Write Property: Width. More...

Detailed Description

Visual Component base class.

All of the user interface elements available in the SDK derive from this class.

Constructor & Destructor Documentation

◆ FBVisualComponent()

FBVisualComponent ( )

Constructor.

Member Function Documentation

◆ AddChild()

bool AddChild	(	FBVisualComponent	pChild,
		int	pId = `0`
	)

Add a child component.

Parameters

pChild	Visual component to add as a child.
pId	User reference number to associate with pChild(default=0).

Returns: Operation was successful (true or false).

◆ GetChild()

FBVisualComponent GetChild ( int pId = 0 )

Get a child component.

Parameters

pId	User reference number to look for child with(default=0).

Returns: Handle to child (NULL if not found).

◆ GetQWidgetAddress()

QWidget GetQWidgetAddress ( )

Get internal QWidget.

Returns: Handle to internal QWidget object.

◆ IsView()

bool IsView ( )

Is component a view?

Returns: true if component is a view.

◆ Refresh()

Refresh ( bool pNow = False )

Refresh component.

Parameters

pNow	Refresh immediately if true (default = false).

◆ ViewExpose()

ViewExpose ( )

Exposed view callback function.

◆ ViewInput()

ViewInput	(	int	pMouseX,
		int	pMouseY,
		FBInputType	pAction,
		int	pButtonKey,
		int	pModifier
	)

Input callback function.

Parameters

pMouseX	Mouse X position.
pMouseY	Mouse Y position.
pAction	Mouse action.
pButtonKey	Keyboard input.
pModifier	Keyboard input modifier.

Member Data Documentation

◆ BorderCaption

str BorderCaption

Read Write Property: Caption to display in border.

◆ BorderCornerRadius

int BorderCornerRadius

Read Write Property: Corner radius (rounded).

◆ BorderInSet

bool BorderInSet

Read Write Property: Is border inset?

◆ BorderMaxAngle

float BorderMaxAngle

Read Write Property: Max angle for rounding.

◆ BorderShowCaption

bool BorderShowCaption

Read Write Property: Show caption?

◆ BorderSpacing

int BorderSpacing

Read Write Property: Spacing of border.

◆ BorderStyle

FBBorderStyle BorderStyle

Read Write Property: Style of border.

◆ BorderWidth

int BorderWidth

Read Write Property: Width of border.

◆ Caption

str Caption

Property: Widget caption.

◆ Enabled

bool Enabled

Read Write Property: Is visual enabled?

◆ Height

int Height

Read Write Property: Height.

◆ Hint

str Hint

Read Write Property: Hint to show.

◆ Left

int Left

Read Write Property: Left coordinate.

◆ ReadOnly

bool ReadOnly

Read Write Property: Is visual component read only?

◆ RegionAttachToHeight

FBVisualComponent RegionAttachToHeight

Read Write Property: Height Attachment source.

◆ RegionAttachToWidth

FBVisualComponent RegionAttachToWidth

Read Write Property: Width Attachment source.

◆ RegionAttachToX

FBVisualComponent RegionAttachToX

Read Write Property X Attachment source.

◆ RegionAttachToY

FBVisualComponent RegionAttachToY

Read Write Property: Y Attachment source.

◆ RegionAttachTypeHeight

FBAttachType RegionAttachTypeHeight

Read Write Property: Height Attachment type.

◆ RegionAttachTypeWidth

FBAttachType RegionAttachTypeWidth

Read Write Property: Width Attachment type.

◆ RegionAttachTypeX

FBAttachType RegionAttachTypeX

Read Write Property: X Attachment type.

◆ RegionAttachTypeY

FBAttachType RegionAttachTypeY

Read Write Property: Y Attachment type.

◆ RegionName

str RegionName

Read Write Property: Region name.

◆ RegionOffsetHeight

int RegionOffsetHeight

Read Write Property: Region height offset.

◆ RegionOffsetWidth

int RegionOffsetWidth

Read Write Property: Region width offset.

◆ RegionOffsetX

int RegionOffsetX

Read Write Property: Region X offset.

◆ RegionOffsetY

int RegionOffsetY

Read Write Property: Region Y offset.

◆ RegionPosMaxX

int RegionPosMaxX

Read Write Property: Region X position Max

◆ RegionPosMaxY

int RegionPosMaxY

Read Write Property: Region Y position Max

◆ RegionPosMinX

int RegionPosMinX

Read Write Property: Region X position Min

◆ RegionPosMinY

int RegionPosMinY

Read Write Property: Region Y position Min

◆ RegionRatioHeight

float RegionRatioHeight

Read Write Property: Ratio for Height attachment.

◆ RegionRatioWidth

float RegionRatioWidth

Read Write Property: Ratio for Width attachment.

◆ RegionRatioX

float RegionRatioX

Read Write Property: Ratio for X attachment.

◆ RegionRatioY

float RegionRatioY

Read Write Property: Ratio for Y attachment.

◆ Top

int Top

Read Write Property: Top coordinate.

◆ Visible

bool Visible

Read Write Property: Is visual component visible?

◆ Width

int Width

Read Write Property: Width.
