To transfer a 3S Lattice to Lattice Commander

Lattice information as created through 3S can easily be transferred to the Lattice Commander, capitalizing on existing knowledge and workflow.

1. Generate the Lattice topology through 3S:
   1. Load a part into Parts and select a topology from the Structure Library.
   2. Generate the topology through Modify > New Structure > (Topology loaded in the previous step).
   3. In the part's Project Tree branch Structure n > Volume Data n > Part, select the desired Cell and apply it with Create Simulation.

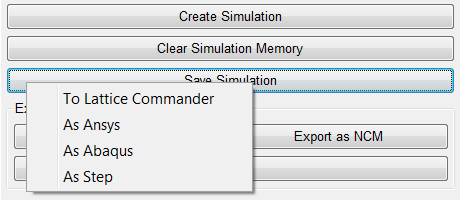

2. Transfer the generated topology through Structure n > Save Simulation > To Lattice Commander.
