To sanitize duplicate nodes

Fully separate shells that currently share nodes with each other

Note: This repair action is only available when creating repair scripts.

The manufacturing of a part can be problematic when multiple shells share the same node. The Sanitize Duplicate Nodes repair action creates individual nodes for each shell.

1. In the context view, switch to the Repair Scripts tab.
2. Click New Script.
3. Enter a name for the script and click OK.
4. In the context view, choose the Sanitize Duplicate Nodes action from the drop-down menu.
5. Optional: Click Save.
6. Click Execute to run the repair script.

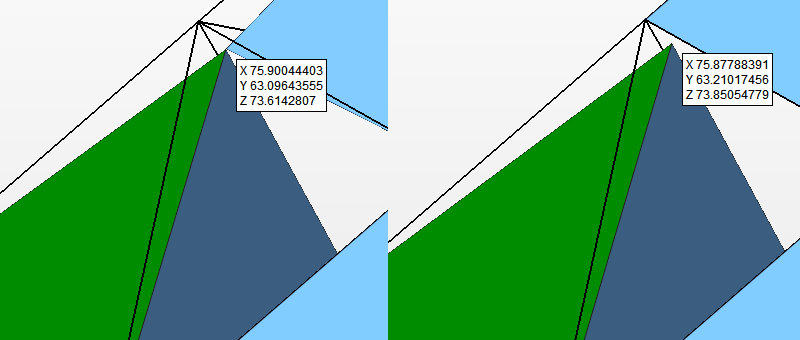

Left: Two shells sharing a node. Right: Two shells with unique nodes.
