particleVector サンプル スクリプト

説明:

次のサンプル スクリプトは、particleVector チャネルにベクター値を割り当てます。

用途:

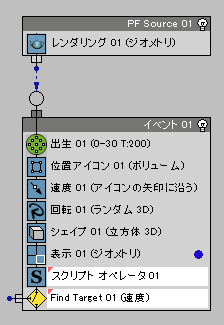

Script_Operator内で使用して、Find_Target テストのターゲット ポイントの位置を制御できます。

効果:

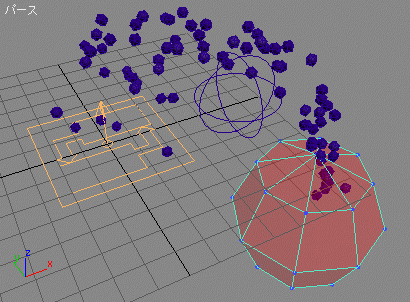

シーン ジオメトリ オブジェクトの最初の頂点の位置を取得し、ランダム オフセットを追加して、すべてのパーティクルの particleVector チャネルに割り当てます。その結果、Find_Target が particleVector チャネルを読み取り、すべてのパーティクルをチャネル内の頂点に設定されます。このため、すべてのパーティクルが頂点に向かうようになります。

例:

    --The ChannelsUsed handler defines the channels
    --to be made available to the script.
    --For the list of all channels, see
    --Interface: MaxscriptParticleContainer
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to
    on ChannelsUsed pCont do
    (
    --Enable the Vector channel:
    pCont.useVector = true
    )

    --The Init handler is called on initialization.
    --It is not used in this case.
    on Init pCont do
    (
    --Define a global variable with unique name and store the
    --scene object which also has a unique name in it
    global obj_19680217 = $Sphere_19680217
    --If the scene object does not exist, create a sphere,
    --give it the unique name and assign to the global variable
    if obj_19680217 == undefined then
    obj_19680217 = Sphere name:"Sphere_19680217"
    )

    --The Proceed handler contains the main script
    --applied to the Particles.
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to:
    on Proceed pCont do
    (
    --Get the current number of particles
    count = pCont.NumParticles()

    --Loop from 1 to the number of particles:
    for i in 1 to count do
    (

    --Set the particle index in the container to the current i value.
    --This makes the i-th particle in the container the current one
    pCont.particleIndex = i

    --Get the position of the first vertex of the scene object.
    vpos = (getVert obj_19680217.mesh 1)

    --Add a random variation between -1 and +1 to all 3 axes
    vpos += random [-1,-1,-1] [1,1,1]

    --Set the particleVector channel value to the calculated value
    pCont.particleVector = vpos
     )--end i loop
    )--end Proceed

    --The Release handler is used to do cleanup work.
    --Not used in this case.
    on Release pCont do
    (
    )
