Script Test の例

説明:

次のサンプル スクリプトは、Script Test の既定のスクリプトです。球状のボリュームに対してパーティクルをテストする方法を示します。

用途:

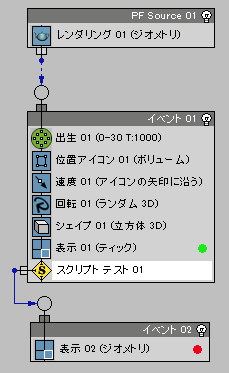

このスクリプトは、Script_Test アクション内で使用する必要があります。

効果:

スクリプトは、すべてのパーティクルの位置を半径 20 と比較し、パーティクルが半径内にある場合はパーティクルのテスト状態を true に設定します。

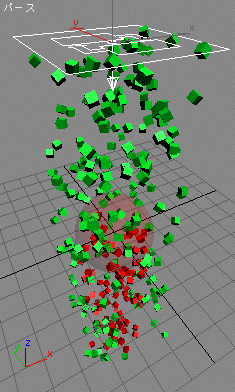

上記の設定では、球を通り抜けるパーティクルが次のイベントに送信され、そこでカラー変更が行われます。

例:

    --The ChannelsUsed handler defines the channels
    --to be made available to the script.
    --For the list of all channels, see
    --Interface: MaxscriptParticleContainer
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to
    on ChannelsUsed pCont do
    (
    --Enable the Time channel:
    pCont.useTime = true
    --Enable the Position channel:
    pCont.usePosition = true
    )

    --The Init handler is called on initialization.
    --It is not used in this case.
    on Init pCont do
    (
    )

    --The Proceed handler contains the main script
    --applied to the Particles.
    --The parameter pCont passed to the handler
    --contains the Particle Container the script is applied to:
    on Proceed pCont do
    (
    --get the total number of particles
    count = pCont.NumParticles()
    --loop through all particles
    for i in 1 to count do
    (
    --Set the particle index in the container to the current i value.
    --This makes the i-th particle in the container the current one
    pCont.particleIndex = i
    -- all particles inside a sphere with radius 20 satisfy the test
    if length (pCont.particlePosition) < 20 then
    (
    --set the Test Status of the particle to True
    pCont.particleTestStatus = true
    --set the Test Time of the particle to the current Particle Time
    pCont.particleTestTime = pCont.particleTime
    )
    )--end i loop
    )

    --The Release handler is used to do cleanup work.
    --Not used in this case.
    on Release pCont do
    (
    )
