The ClarkCountyFootpath subassembly inserts links for a concrete footpath with inside and outside grass boulevards based on the Clark County Footpath Standard. The footpath is over a CSBC layer.
You should verify that the dimensions used match your interpretation of the standard plan.
Attachment
The attachment point is at the inside edge of the initial cut or fill slope. This component can be attached to either the left or right side.
Input Parameters
|
Parameter |
Description |
Type |
Default |
|---|---|---|---|
| Side | Specifies which side to place the subassembly. | Left / Right | Right |
| Footpath Width | Footpath width | Numeric |
6.0 ft 1.8 m |
| Footpath Thickness | Footpath thickness | Numeric |
0.33 ft 0.1 m |
| Use CSBC Rock | Use CSBC rock | Yes / No | Yes |
| CSBC Thickness | CSBC thickness | Numeric |
0.17 ft 0.05 m |
| Footpath Slope | Footpath slope | Numeric, positive |
1.5% |
| Inside Boulevard Width | Inside boulevard width | Numeric |
1 ft 0.3 m |
| Outside Boulevard Width | Outside boulevard width | Numeric |
1 ft 0.3 m |
Target Parameters
This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.
|
Parameter |
Description |
Status |
|---|---|---|
| Footpath Inside Align | May be used to override the inside boulevard width. The following object types can be used as targets for specifying the width: alignments, polylines, feature lines or survey figures. | Optional |
| Footpath Outside Align | May be used to override the footpath width. The following object types can be used as targets for specifying the width: alignments, polylines, feature lines or survey figures. | Optional |
| Footpath Inside Profile | May be used to override the inside footpath level. The following object types can be used as targets for specifying the width: alignments, polylines, feature lines or survey figures. | Optional |
| Footpath Outside Profile | May be used to override the outside footpath level. The following object types can be used as targets for specifying the level: profiles, 3D polylines, feature lines or survey figures. | Optional |
Runtime Logical Assignments
None.
Output Parameters
None.
Behavior
The inside grass strip, footpath and outside grass boulevard links are inserted outward from the attachment point at the given slope. The grass strips can be omitted by specifying a zero-width. The CSBC is constructed under the footpath if the parameters are set to include it.
Optionally, various element widths can be attained by attaching to offset alignments. Also, the footpath crossfall can be derived by tying into an offset profile.
Layout Mode Operation
In layout mode, this subassembly displays the boulevards and footpath based on the input parameter values given.
Point, Link and Shape Codes
The following table lists the point, link and shape codes for this subassembly that have codes assigned to them. Point, link or shape codes for this subassembly that do not have codes assigned are not included in this table.
|
Point, Link or Shape |
Code |
Description |
|---|---|---|
| P2 | Footpath_In | Inside edge of footpath |
| P3 | Footpath_Out | Outside edge of footpath |
| P7 | Btm-SW-CSBC-IN | Inside bottom of CSBC |
| P6 | Btm-SW-CSBC-OUT | Outside bottom of CSBC |
| L1, L3 | Top, Datum | Top boulevard surface |
| L2 | Top, Footpath | Top footpath surface |
| L6, L9 | Datum | |
| S1 | Footpath | Footpath area |
| S2 | CSBC-SW | CSBC Area under the footpath |

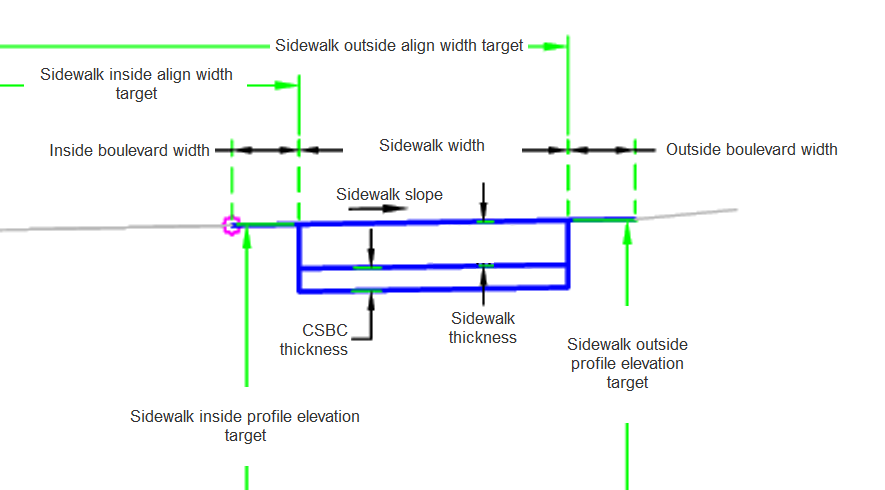

Coding Diagram
