RockRetainingWall

Attachment

The attachment point is at either the rock face or a distance away from the way location based on the Front Link input parameters.

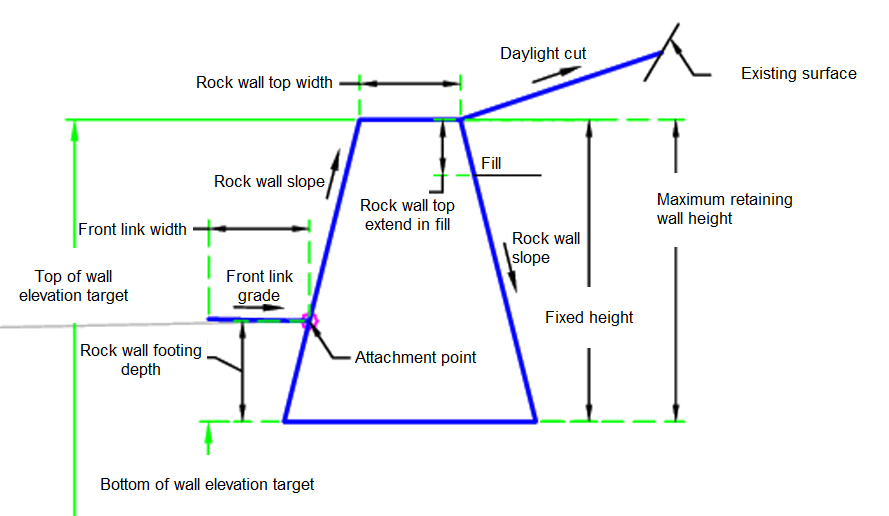

Input Parameters

Note: Note: All dimensions are in metres or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4 : 1) unless indicated as a percent slope with a “%” sign.

Parameter	Description	Type	Default
Side	Specifies which side to place the subassembly.	Left / Right	Right
Rock Wall Footing Depth	Footing depth of the rock wall	Numeric	1.0 ft 0.30 m
Rock Wall Slope	Rock wall slope	Numeric	0.25 ( : 1)
Rock Wall Top Width	Rock wall top width	Numeric, positive	1 ft 0.30 m
Daylight Cut	Daylight cut	Numeric, positive	3 ( : 1)
Maximum Retaining Wall Height	Maximum retaining wall height	Numeric, positive	6 ft 1.8 m
Use fixed height	Use fixed height	Yes / No	Yes
Fixed Height	A fixed height if specified to be used	Numeric, positive	3 ft 1.0 m
Use Daylight	Use daylight	Yes / No	Yes
Front Link Gradient	Front link gradient	Numeric	-2%
Front Link Code	Front link code	String	Top, Pave
Front Link Width	Front link width	Numeric, positive	0.25 ft 0.08m
Use Front Link	Use front link	Yes / No	Yes
Rock Wall Top Extend In Fill	Rock wall top extend in fill	Numeric, positive	1 ft 0.3 m

Target Parameters

This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.

Parameter	Description	Status
Existing Surface	Name of the daylighting surface. The following object types can be used as targets for specifying the surface: surfaces.	Optional
Top of Wall	May be used to override the top of wall level of the rock wall. In order to be used, the Fixed Height Input Parameter must be set to No. The following object types can be used as targets for specifying the level: profiles, 3D polylines, feature lines, or survey figures.	Optional
Bottom of Wall	May be used to override the bottom of wall level. The following object types can be used as targets for specifying the level: profiles, 3D polylines, feature lines or survey figures.	Optional

Runtime Logical Assignments

None.

Output Parameters

None.

Behavior

The initial point is set at the attachment point. The front link is built if Use Front Link is set to Yes. The rock wall is then built.

If Use Fixed Height is set to Yes the rock wall is built using the input parameters. If the Bottom of Wall profile is set then the top of wall height is determined by the Bottom of Wall profile level plus the fixed height. The top of wall target is not used.

Cut Condition:

If Use Fixed Height is set to No the rock wall is built using the input parameters. The Top of Wall Target controls the top of wall level. If the Top of Wall Target is not set then the Top of Wall level is the existing ground level at the inside edge of the wall.

Fill Condition:

If Use Fixed Height is set to No the rock wall is built using the input parameters. The Top of Wall Target controls the top of wall level. If the Top of Wall Target is not set then the Top of Wall level is the distance between the attachment point and the Rock Wall Top Extend in Fill input parameter.

In all conditions the wall height is calculated and compared to the Maximum Retaining Wall Height. If the value is exceeded then an error message is sent to the Event Viewer.

Layout Mode Operation

In layout mode, this subassembly draws the rock retaining wall with the input parameters.

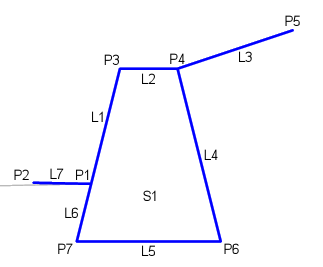

Point, Link and Shape Codes

The following table lists the point, link and shape codes for this subassembly that have codes assigned to them. Point, link or shape codes for this subassembly that do not have codes assigned are not included in this table.

Point, Link or Shape	Code	Description
P1	Face_Wall	Face of the wall
P2	EC	Edge of travelled way
P3, P4, P6, P7	Rock Wall	Rock wall
P5	Daylight	Daylight
L1-L2	Rock Wall, Top	Top of the rock wall
L3	Daylight, Top, Datum	Daylight link
L4, L6	Rock Wall	Rock wall
L5	Rock Wall, Datum	Bottom of rock wall
L7	Top, Pave	Pavement top
S1	Rock Wall	Rock wall area
