The KerbOffsetPipe subassembly is used to place a kerb and channel with a pipe behind the kerb and channel. A terrace is also placed behind the kerb.
Attachment
The attachment point is at the flange point of the channel.

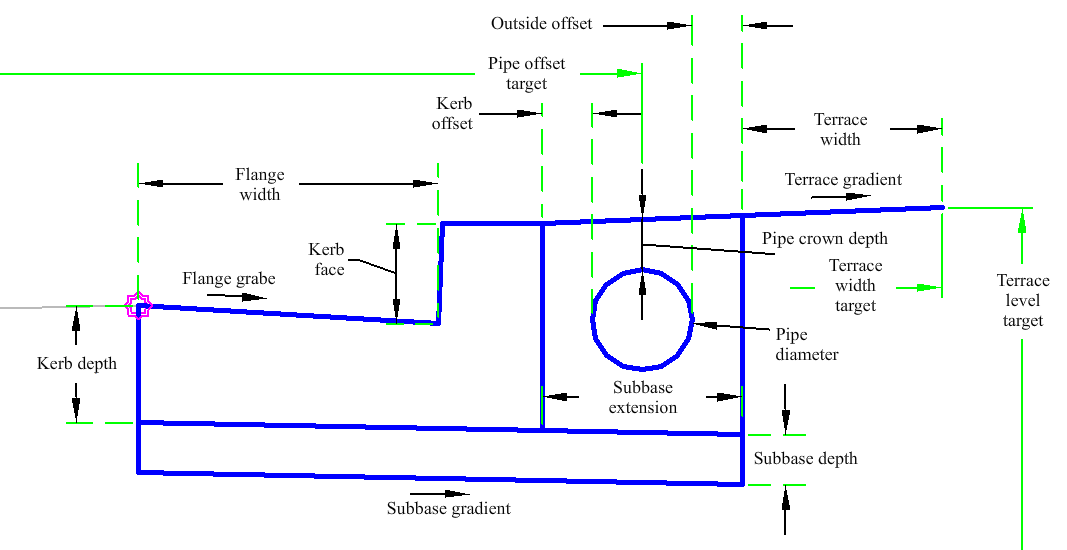

Input Parameters
|
Parameter |
Description |
Type |
Default |
|---|---|---|---|
|
Side |
Specifies which side to place the subassembly. | Left/Right |
Right |
|
Flange Width |
Width from the flange of the channel to the invert level. | Numeric |
1.5 ft 0.45 m |
|
Flange Gradient |
% slope of the channel. | Numeric |
6 (%) |
|
Kerb Face |
Height from the invert level to the top of kerb. | Numeric |
0.5 ft 0.15 m |
|
Kerb Depth |
Depth of the kerb at the flange point. | Numeric, positive |
0.583 ft 0.18 m |
|
Subbase Depth |
Depth of the subbase layer at the attachment point (zero to omit). | Numeric, positive |
0.25 ft 0.08m |
|
Subbase Extension |
Width that the Subbase layer extends beyond the kerb. | Numeric |
1 ft 0.3 m |
|
Terrace Width |
Width of the terrace. | Numeric, positive |
1 ft 0.3 m |
|
Terrace Gradient |
% slope of the terrace. | Numeric |
4 (%) |
|
Pipe Diameter |
Drain pipe diameter. | Numeric, positive |
0.5 ft 0.15 m |
|
Kerb Offset |
Distance from the back of kerb to the drain pipe. | Numeric |
0.25 ft 0.08m |
|
Outside Offset |
Distance from the drain pipe to the edge of the pipe bedding. | Numeric, positive |
0.25 ft 0.08m |
|
Subbase Gradient |
% slope of the subbase. | Numeric |
2 (%) |
|
Pipe Crown Depth |
Distance from the drain pipe invert to the bottom of the pipe bedding. | Numeric, positive |
0.25 ft 0.08m |
Target Parameters
This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.
|
Parameter |
Description |
Status |
|---|---|---|
|
Terrace Width |
May be used to override the terrace width value and tie the terrace width to an offset alignment. The following object types can be used as targets for specifying the width: alignments, polylines, feature lines, or survey figures. | Optional |
|
Terrace Level |
May be used to override the terrace slope and tie the level of the terrace to the level of a profile. The following object types can be used as targets for specifying the level: profiles, 3D polylines, feature lines, or survey figures. | Optional |
|
Pipe Offset |
May be used to override the pipe offset value and tie the pipe to an offset alignment. The following object types can be used as targets for specifying the width: alignments, polylines, feature lines, or survey figures. | Optional |
Runtime Logical Assignments
None.
Output Parameters
None.
Behavior
The subassembly builds a shape for a simple kerb and channel, with the attachment point at the flange of the channel. A pipe is then placed behind the kerb with bedding material. A terrace is then placed behind the pipe bedding material.
Layout Mode Operation
In layout mode, this subassembly displays the kerb-and-channel, pipe, and terrace components based on the input parameters given.
Point, Link, and Shape Codes
The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.
|
Point, Link, or Shape |
Code |
Description |
|---|---|---|
| P1 | Flange, Top | Flange point of the channel |
| P2 | InvertLevel_Channel | Channel invert level point |
| P3 | TopKerb | Top-of-kerb |
| P4 | BackKerb | Back-of-kerb |
| P5 - P6 | Kerb_Base | Top of base under kerb |
| P7 | SubBase, Datum | Bottom of base under kerb |
| P8 | SubBaseExtension | Top of base under pipe |
| P9 | SubBase, Datum | Bottom of base under pipe |
| P10 | Top | |
| P11 | TopPipe | Top of pipe |
| P12 | CenterPipe | Center of pipe |
| P13 | BottomPipe | Invert of pipe |
| P14 | Top, TerraceWidth | End of terrace |
| P15 | SubbaseExtension | Back of subbase |
| L1 | Top, Kerb, Flange | Kerb flange |
| L2 | Top, Kerb, KerbFace | Kerb face |
| L3 | Top, Kerb, KerbTop | Top of kerb |
| L4 - L5 | Kerb_Base | Kerb edges |
| L6 | Kerb_Back | Back of kerb |
| L7 | SubBaseDepth, Datum | Subbase top under kerb |
| L8 | SubBaseExtension | Subbase top behind kerb |
| L9 | SubBase, Datum | Subbase link under pipe |
| L10 | Datum, Subbase | Bottom of subbase |
| L11 | Top, Terrace | Terrace |
| L12 | Pipe | |
| L13 | Top, TerraceWidth | Terrace |
| L14 | SubbaseExtension | |
| L15 | Datum | |
| S1 | Kerb | |
| S2 | Subbase | |
| S3 | Backfill | Material around pipe |

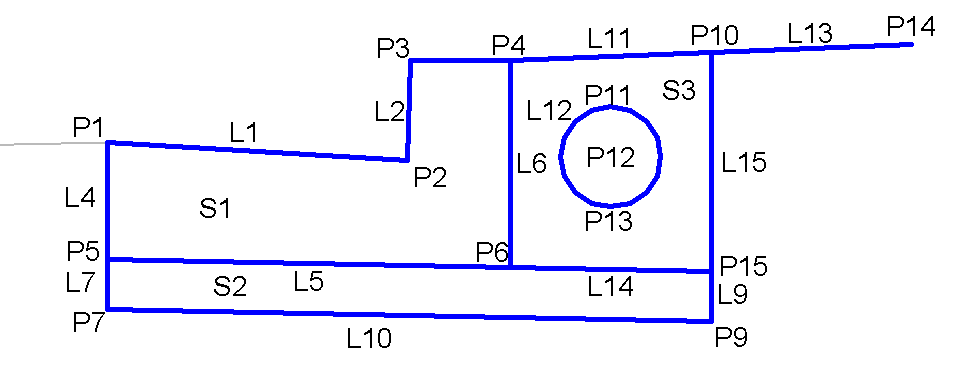

Coding Diagram
