The ClarkCountyConcreteBarrierType2 subassembly inserts links to represent a Clark County Type 2 concrete barrier.
You should verify that the dimensions used match your interpretation of the standard plan.
Attachment
The attachment point is at the bottom centre of the concrete barrier.
Input Parameters
None.
Target Parameters
This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.
None.
Runtime Logical Assignments
None.
Output Parameters
None.
Behavior
The subassembly constructs the shape of a Clark County Concrete Barrier, Type 2, with the base centred about the attachment point.
Layout Mode Operation
In layout mode, this subassembly draws the initial fill slope to 5 units.
Point, Link and Shape Codes
The following table lists the point, link and shape codes for this subassembly that have codes assigned to them. Point, link or shape codes for this subassembly that do not have codes assigned are not included in this table.
|
Point, Link or Shape |
Code |
Description |
|---|---|---|
| P7-P8 | JB_Top | Top of the barrier |
| L3-L9 | Barrier | Barrier links |
| S1 | Barrier | Shape of the barrier |

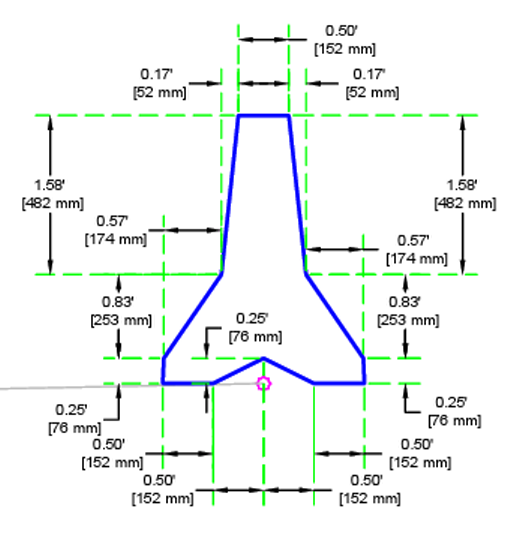

Coding Diagram
