To add color to a part

Add and modify color information to triangles and meshes

Jump to:

• Paint on triangles
• Paint on surfaces
• Paint on shells
• Read color from triangle

Paint on triangles

1. Select the part.
2. Click Modify > Texture & Color.
3. From the toolbar, click Paint on triangles.
4. Click individual triangles to set their color.
5. Click Apply changes to apply the color to the part.

Left: A few colored triangles are missing. Right: The part was improved by painting on triangles.

Top

Paint on surfaces

1. Select the part.
2. Click Modify > Texture & Color.
3. From the toolbar, click Paint on surfaces.
4. Paint the part with color as needed.
5. Click Apply changes to apply the color to the part.

Painting on surfaces.

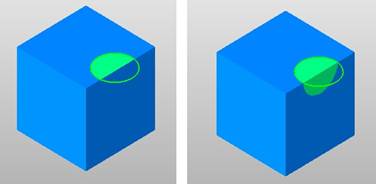

Left: A selection tolerance below 90°. Right: A selection tolerance above 90° and the brush now covers the adjacent side of the box.

Top

Paint on shells

1. Select the part.
2. Click Modify > Texture & Color.
3. From the toolbar, click Paint on shells.
4. In the display, click the shells to be colored.
5. Click Apply changes to apply the color to the part.

Painting on shells

Top

Read color from triangle

1. Select the part.
2. Click Modify > Texture & Color.
3. From the toolbar, click Read color from triangle.
4. Click a triangle on the part which contains the color you wish to read. After you click the triangle, the color bar is updated with this color.
5. Now you can apply this color to the part with the Paint on triangles, Paint on surfaces, or Paint on shells methods.
