Tutorial B5: Post-Process the Results

1. After the solution is completed, click OK to load the results into Inventor Nastran.


   Results for the linear buckling subcase have been loaded in Results. Autodesk Nastran (the solver) calculates the displacements to graphically represent the modal shapes for each eigenvalue extracted.

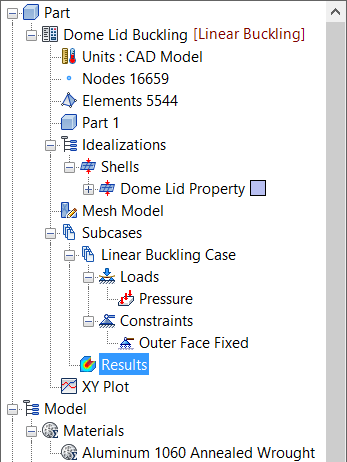

2. Double-click on Results and select Mode 1 from the Subcases list.

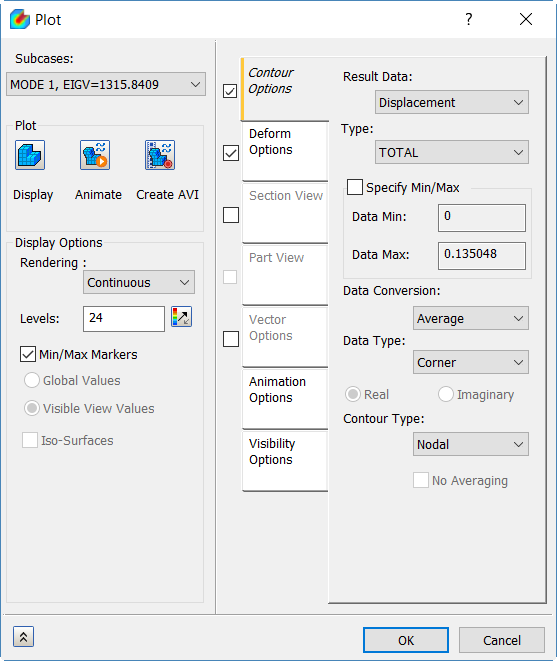

3. In the Result drop-down, select Displacement, and in the Type drop-down, select TOTAL.

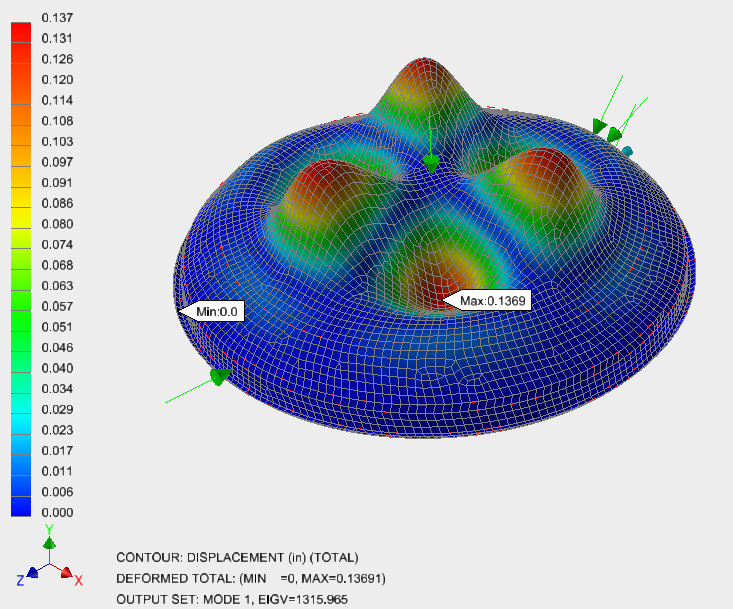

4. Check Deform Options and under Plot, click Display. The plot should look as shown below.


5. The first and lowest eigenvalue is about 1316, which is of primary interest.
6. When multiplied by the applied load, –1 Psi, you get the lowest critical buckling load of ~1316 Psi.

This concludes Linear Buckling Analysis of a Dome Lid.

The main topics covered were as follows:

• How to set up a simple linear buckling analysis.
• How to interpret the eigenvalue extraction results.
• How to calculate the lowest critical buckling load.
