Tutorial B2: Linear Static Analysis of a Trailer Frame with Bar and Beam Elements

This tutorial demonstrates a linear static analysis of a trailer frame using bar and beam elements.

1. The goal of this analysis is to introduce you to bars and beams.

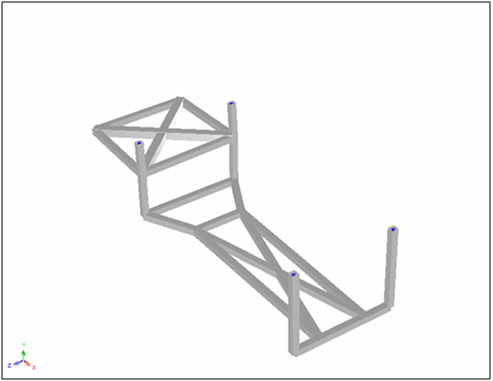

2. The trailer frame is composed of beam elements.



3. The units used in this analysis are inches, pounds and seconds. The effects of gravity are considered in this model.
