User Permissions at action level

Database owners can set user access permissions to a selected group (i.e. Group, Model Group, etc) in the database. These permissions are implemented at action level and are designed to prevent specific users from performing certain actions.

Permissions at action level can be implemented if user permissions have been enabled for the database.

Display the Edit Group Permissions dialog by right-clicking on a Group in the Explorer Window and selecting Advanced then Edit group permissions from the popup menu.

Tip: This menu option is only available if you are a Database Owner.

Action roles can be selected along with more general roles from the Roles dropdown. Available action roles are:

• Live Owner
• Live Control Room Manager
• Live User
• Live Viewer

TSDB functionality is only available if the TSDB option is enabled on your licence.

• TSDB Owner
• TSDB Editor
• TSDB User
• TSDB Viewer

See User Permissions for an overview on each of these action roles.

Summary of permissionable actions

The table below summarises the actions that are permissionable as well as the roles that are required:

Action	InfoWorks ICM	ICMLive Operator Client	Role Required
Edit manifests and manifest deployments (excluding the five specific actions below)			Live User, Live Control Room Manager or Live Owner
Edit manifest mode of operation			Live Control Room Manager or Live Owner
Modify alert trigger			Live Control Room Manager or Live Owner
Generate manual runs in the Operator Client			Live Control Room Manager or Live Owner
Deploy / undeploy manifest deployment in the Configuration Manager			Live Control Room Manager or Live Owner
Modify action status			Live Control Room Manager or Live Owner
Edit TSDB objects (Add / delete time series streams)			TSDB Owner or Live Owner
Apply edits and update TSDB data			TSDB Editor, TSDB Owner or Live Owner
Time Series Database Grid editable			TSDB Editor, TSDB User,TSDB Owner or Live Owner
Refresh time series database(s) from external sources before starting run (option available from the TSDB Options dialog).			TSDB Editor, TSDB Owner or Live Owner

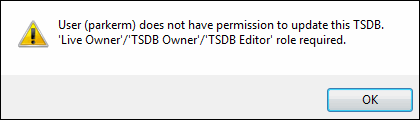

Permissioned dialogs or options will be read-only for users who have not been assigned the required roles. Alternatively, a warning message of the type of the screenshot shown below will be displayed if users attempt to perform an action for which they do not have the required permission:

Overview of the available Live Roles

The table summarises the differences between the various Live roles:

Action	Live Owner	Live Control Room Manager	Live User	Live Viewer
Full edit privileges over all items (such as manifests and manifest deployments) in a Live Group)
Edit manifests and manifest deployments
Edit manifest mode of operation
Set / reset alert (full model run) trigger
Generate manual runs in the Operator Client
Deploy / undeploy manifest deployment
Modify action status
