Author and publish models so you can use them with AutoCAD and Revit.
The BIM Content environment authors (defines) and publishes (exports) IPTs so that you can use them with AutoCAD and Revit. These applications are purpose-built building design and construction systems for documenting Architectural, Structural, Mechanical, Electrical, and Plumbing (MEP) information.
- As Revit geometry (simple solid) to a Revit Family (.RFA)
- As an Industry Foundation Classes (.IFC) file. Inventor provides IFC2x3 output.
- As an Autodesk Exchange File (.ADSK)
Multiple Autodesk products can consume an Autodesk Exchange File. BIM Content provides models with their metadata to a variety of Architectural, Engineering, & Construction (AEC) applications.
Autodesk products, such as AutoCAD and Revit, contain different tools for consuming data. BIM Content is an Autodesk Inventor add-in that uses Autodesk Inventor's geometric modeling commands to define models that can be used in other Autodesk products. BIM Content has commands for defining connectors, simplifying and recognize model geometry/data, and exporting data to either a .RFA, .IFC, or .ADSK file.
The general workflow for BIM Content consists of three main components:
- Simplify
- The process of reducing the complexity of a model by removing components or unnecessary features. Use the Simplified Assemblies command to create envelopes and combine components. Use Simplify, Simplify substitute, Model States, and other techniques to simplify a part or assembly before authoring or publishing. Since building engineers need only the details that are relevant to their design, often only the basic 3D shape and connection features are important. When you export a component, it is good practice to keep the .RFA, .IFC, and .ADSK file size as small as possible by simplifying the assembly.
- Author

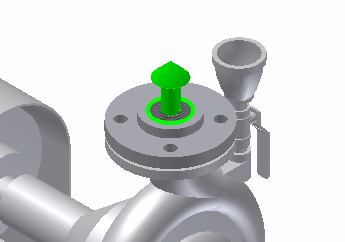

- The process of defining connector objects that indicate how and where things connect. Connector objects are used in MEP applications to define associations between equipment, such as a heat exchanger, and building systems, such as HVAC. Each of the five types of connectors: cable, conduit, duct, electrical, and pipe has a command to create, edit, and delete them.
-
Connectors do not indicate flow direction. Flow direction is defined independently inside of the connector element. Typically the point away from the host component. Use Direction to reverse the connector direction.
You add connectors by defining their position, orientation, shape, and size. You then select the connection type before applying the connector to the model to use in AutoCAD MEP or Revit MEP. As you add connectors, they appear in the BIM Content browser.
- Publish
- The process of verifying and exporting Inventor data to an .ADSK, .IFC, or a .RFA file. The exported file contains geometry, 2D views, connectors, parameters, and other properties. The receiving application imports the application's supported data.
Use Simplify or a Model State to simplify the data before exporting to an .ADSK, .IFC, or a .RFA file. If the design consists of a single part, you can simplify by placing the part in an empty assembly file, then use Simplify Substitute with the assembly file.
A User Defined Coordinate System (UCS) can be selected in the Export Building Components command. Any UCS defined in the part or assembly is available in Export Building Components command. To facilitate it, the UCS command is available in the BIM Content tab. Many architectural applications consider the positive Z direction to be up toward the ceiling where mechanical applications often consider positive Z to be out. It is important to define the proper UCS so that the model imports in the appropriate orientation.
Both Revit MEP and AutoCAD MEP can import ADSK files and the associated data. The application imports only the data that is supported. Data that is not supported is ignored in the file. It is important to remember that if an .ADSK file is utilized it will be unable to be fully modified in the AEC application. For this reason, it is important to follow the Inventor to Revit Family File workflow to achieve either an .ADSK, .IFC, or a .RFA file.
