LayeredTexture class. More...

#include <pyfbsdk_generated.h>

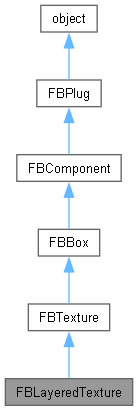

Inheritance diagram for FBLayeredTexture:

[legend]

Public Member Functions
	FBLayeredTexture (str pName)
	Constructor.

FBLayeredTexture	Clone ()
	Clone the current texture.

	FBDelete ()
	Open Reality deletion function.

	SetLayerConfigDirty ()
	Set layer config dirty to trigger new composition.

Public Member Functions inherited from FBTexture
	FBTexture (str pName)
	Constructor.

FBTexture	Clone ()
	Clone the texture.

	FBDelete ()

	OGLInit (FBRenderOptions pRenderOptions=None)

Public Member Functions inherited from FBBox
	FBBox (str pName)
	Constructor.

bool	AnimationNodeDestroy (FBAnimationNode pAnimationNode)
	Destroy an animation node.

FBAnimationNode	AnimationNodeInGet ()
	Get the (IN/OUT) animation node for this box.

bool	AnimationNodeIsUserData (FBAnimationNode pAnimationNode)
	Is the animation node user data?

FBAnimationNode	AnimationNodeOutGet ()

str	FbxGetObjectSubType ()
	Returns the class sub type inherited by the class of an object, for example: 'Relations', 'Parent-Child', 'Number to Vector', 'Shot'.

str	FbxGetObjectType ()
	Returns the class type inherited by the class of an object, for example: 'Box', 'Constraint', 'TimelineXTrack'.

FBAnimationNode	GetInConnector (int pIndex)
	Get the animation node input associated with the given index.

int	GetInConnectorCount ()
	Get the number of animation node inputs for this box.

FBAnimationNode	GetOutConnector (int pIndex)
	Get the animation node output associated with the given index.

int	GetOutConnectorCount ()
	Get the number of animation node outputs for this box.

Public Member Functions inherited from FBComponent
	FBComponent ()
	Constructor.

str	ClassName ()
	Get the class name.

	DisableObjectFlags (FBObjectFlag pFlags)
	Disable a specific Object Flags.

	EnableObjectFlags (FBObjectFlag pFlags)
	Enable a specific Object Flags.

bool	FBCreate ()
	Open Reality Creation function.

	FBDelete ()
	Open Reality deletion function.

	FBDestroy ()
	Open Reality destruction function.

FBObjectFlag	GetObjectFlags ()
	Get all Object Flags (concatenated).

bool	GetObjectStatus (FBObjectStatus pStatus)
	Check to see if an object status is enabled.

FBFileReference	GetOwnerFileReference (p0)
	Get the owner FileReference object.

	HardSelect ()
	HardSelect.

bool	HasObjectFlags (FBObjectFlag pFlags)
	Check whether a specific object flag is enabled.

bool	Is (int pTypeId)
	Returns true if object is of type TypeId.

bool	ProcessNamespaceHierarchy (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessNamespaceHierarchy.

bool	ProcessObjectNamespace (FBNamespaceAction pNamespaceAction, str pNamespaceName, str pReplaceTo=None, bool pAddRight=True)
	ProcessObjectNamespace.

int	PropertyAdd (FBProperty pProperty)
	Add a property to the component's property manager.

bool	PropertyAddReferenceProperty (FBProperty pReferenceProperty)
	Add a reference property to the component's property manager.

FBProperty	PropertyCreate (str pName, FBType pType, str pDataType, bool pAnimatable, bool pIsUser=False, FBProperty pReferenceSource=None)
	Create user or dynamic property.

	PropertyGetModifiedList (FBArrayTemplate< FB > pPropList, FBPlugModificationFlag pModificationFlags)
	Get list of properties which have been modified since last loading.

	PropertyRemove (FBProperty pProperty)
	Remove a Property from the component's Property manager.

	SetObjectFlags (FBObjectFlag pFlags)
	SetObjectFlags.

	SetObjectStatus (FBObjectStatus pStatus, bool pValue)
	Enable/Disable a specific Object Status.

Public Attributes
FBAnimatableColorAndAlpha	BackgroundColor
	Read/Write Property: Animatable Background color which is used to clear color buffer before composition.

FBListTexture	Layers
	Read/Write Property: Textures Layers.

Public Attributes inherited from FBTexture
FBAnimatableDouble	Alpha
	Read Write Property: Texture alpha value.

FBTextureBlendMode	BlendMode
	Read Write Property: Texture blend mode.

int	Height
	Read Only Property: Height of texture.

FBTextureMapping	Mapping
	Read Write Property: Texture mapping.

FBAnimatableVector3d	Rotation
	Read Write Property: Rotation coordinates.

FBAnimatableVector3d	Scaling
	Read Write Property: Scaling coordinates.

bool	SwapUV
	Read Write Property: Swap UV coordinates?

int	TextureOGLId
	Read Only: OpenGL texture buffer object Id.

FBAnimatableVector3d	Translation
	Read Write Property: Translation coordinates.

FBTextureUseType	UseType
	Read Write Property: Texture Use Type.

FBVideo	Video
	Read Write Property: Media used for texturing.

int	Width
	Read Only Property: Width of texture.

Public Attributes inherited from FBBox
bool	Animatable
	Read Write Property: Is the box animatable.

bool	Live
	Read Write Property: Is live?

bool	RecordMode
	Read Write Property: Is recording?

str	UniqueName
	internal Unique name.

Public Attributes inherited from FBComponent
FBListComponent	Components
	List: List of components.

str	LongName
	Read Write Property: Name and namespace for object.

str	Name
	Read Write Property: Unique name of object. See sample: RemoveSuffixFromNameOfSceneElements.py.

FBListComponent	Parents
	List: Parents.

FBManager	PropertyList
	Read Only Property: Manages all of the properties for the component.

bool	Selected
	Read Write Property: Selected property.

int	TypeInfo
	Contains the Type information of the object.

Public Attributes inherited from FBPlug
str	ClassGroupName
	ClassGroupName of the object.

int	TypeInfo
	TypeInfo.

Detailed Description

LayeredTexture class.

This class is used to encapsulate list of textures. User could subclass this class to support customized blending & compostion modes. See /OpenRealitySDK/Samples/miscellaneous/texture_template/ for example.

See sample: LayeredTexture.py.

Constructor & Destructor Documentation

◆ FBLayeredTexture()

FBLayeredTexture ( str pName )

Constructor.

Parameters

pName Name of texture media. Can be a NULL pointer. If set, this will create a FBVideo object used as the Video property.

Member Function Documentation

◆ Clone()

FBLayeredTexture Clone ( )

Clone the current texture.

Duplicates the current texture.

Returns: Newly created texture.

◆ FBDelete()

FBDelete ( )

Open Reality deletion function.

See sample: DeleteHierarchy.py.

◆ SetLayerConfigDirty()

SetLayerConfigDirty ( )

Set layer config dirty to trigger new composition.

Member Data Documentation

◆ BackgroundColor

FBAnimatableColorAndAlpha BackgroundColor

Read/Write Property: Animatable Background color which is used to clear color buffer before composition.

◆ Layers

FBListTexture Layers

Read/Write Property: Textures Layers.
